SKU: S-UCF209D1-NTN

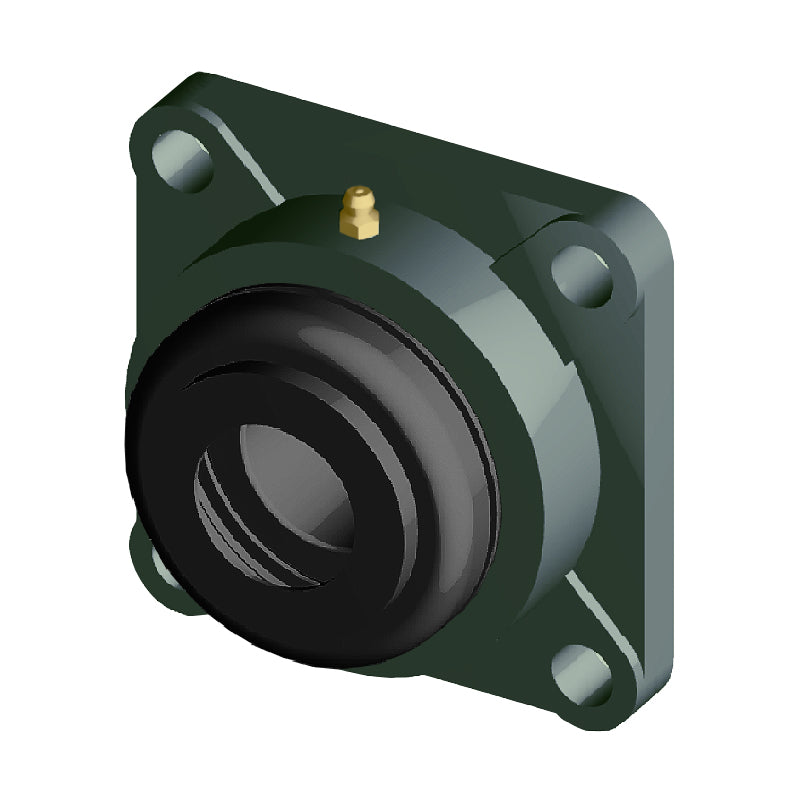

NTN S-UCF209D1 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
NTN S-UCF209D1 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
CHF 56.00
ex VAT
Regular price
Sale price
CHF 56.00
ex VAT
In stock
Price Break
3+
CHF 44.18
4+
CHF 41.70
9+
CHF 41.20
19+
CHF 40.70
49+
CHF 40.21
99+
CHF 39.71
499+
CHF 37.23
999+
CHF 36.73
1999+
CHF 36.24
2999+
CHF 35.74
4999+
CHF 34.75
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCF
- Bolt Hole Centres:
- 105mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| L | 137mm |
| J | 105mm |
| A<sub>2</sub> | 22mm |
| A<sub>1</sub> | 16mm |
| A | 38mm |
| N | 16mm |
| B | 49.2mm |
| S | 19mm |
| A<sub>4</sub> | 63mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 36 kN |
| Static load C<sub>0r</sub> | 20.4 kN |
| Fatigue load limit C<sub>u</sub> | 1.6 kN |
| --- | Unit information |
| Mass | 2.2 kg |
