SKU: S-UCF212D1-NTN

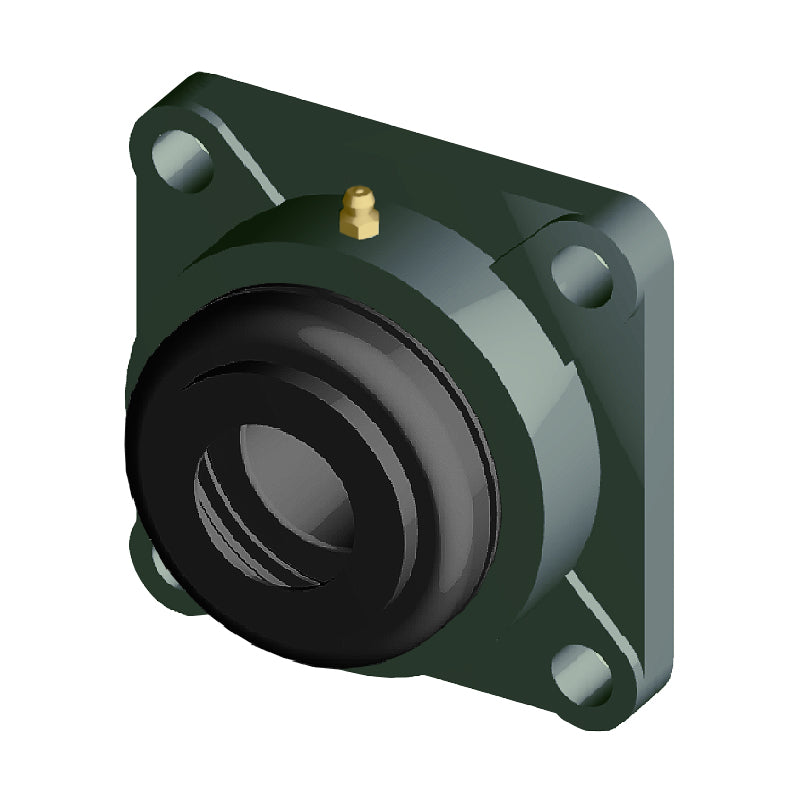

NTN S-UCF212D1 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
NTN S-UCF212D1 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
CHF 90.00
ex VAT
Regular price
Sale price
CHF 90.00
ex VAT
In stock
Price Break
3+
CHF 71.52
4+
CHF 67.50
9+
CHF 66.70
19+
CHF 65.90
49+
CHF 65.09
99+
CHF 64.29
499+
CHF 60.27
999+
CHF 59.47
1999+
CHF 58.66
2999+
CHF 57.86
4999+
CHF 56.25
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCF
- Bolt Hole Centres:
- 143mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| L | 175mm |
| J | 143mm |
| A<sub>2</sub> | 29mm |
| A<sub>1</sub> | 18mm |
| A | 48mm |
| N | 19mm |
| B | 65.1mm |
| S | 25.4mm |
| A<sub>4</sub> | 80mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 58 kN |
| Static load C<sub>0r</sub> | 36 kN |
| Fatigue load limit C<sub>u</sub> | 2.83 kN |
| --- | Unit information |
| Mass | 4.1 kg |
