SKU: S-UCFL205D1-NTN

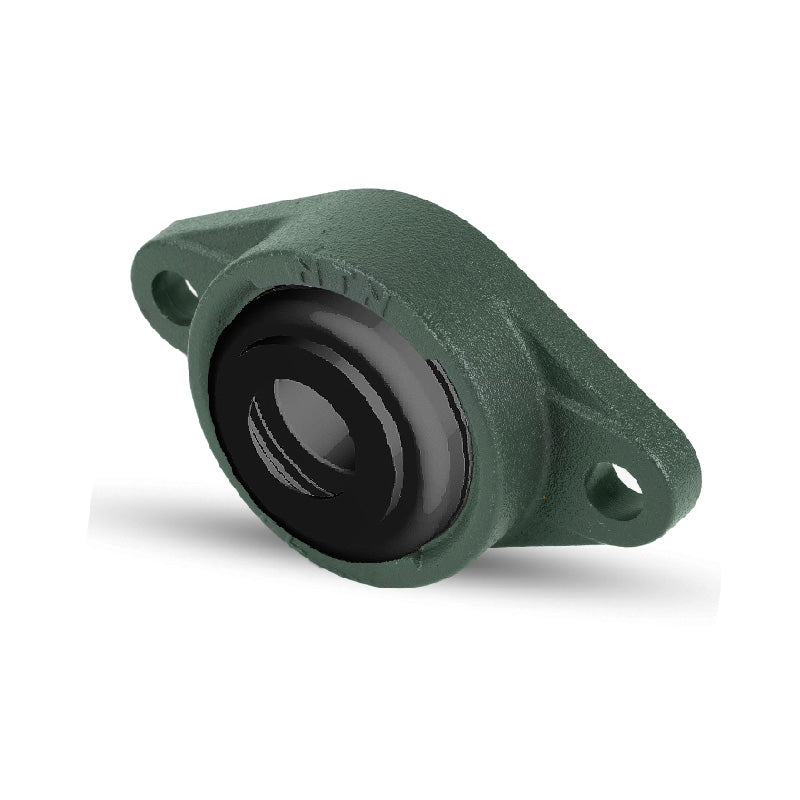

NTN S-UCFL205D1 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
NTN S-UCFL205D1 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
CHF 35.00
ex VAT
Regular price
Sale price
CHF 35.00
ex VAT
In stock
Price Break
3+
CHF 30.72
4+
CHF 29.48
9+
CHF 28.86
19+
CHF 27.93
49+
CHF 27.31
99+
CHF 25.75
499+
CHF 21.72
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCFL
- Bolt Hole Centres:
- 99mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| H | 130mm |
| J | 99mm |
| A<sub>2</sub> | 16mm |
| A<sub>1</sub> | 13mm |
| A | 27mm |
| N | 16mm |
| L | 68mm |
| B | 34.1mm |
| S | 14.3mm |
| A<sub>4</sub> | 44.5mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 15.5 kN |
| Static load C<sub>0r</sub> | 7.85 kN |
| Fatigue load limit C<sub>u</sub> | 0.55 kN |
| --- | Unit information |
| Mass | 0.6 kg |
