SKU: S-UCFL210D1-NTN

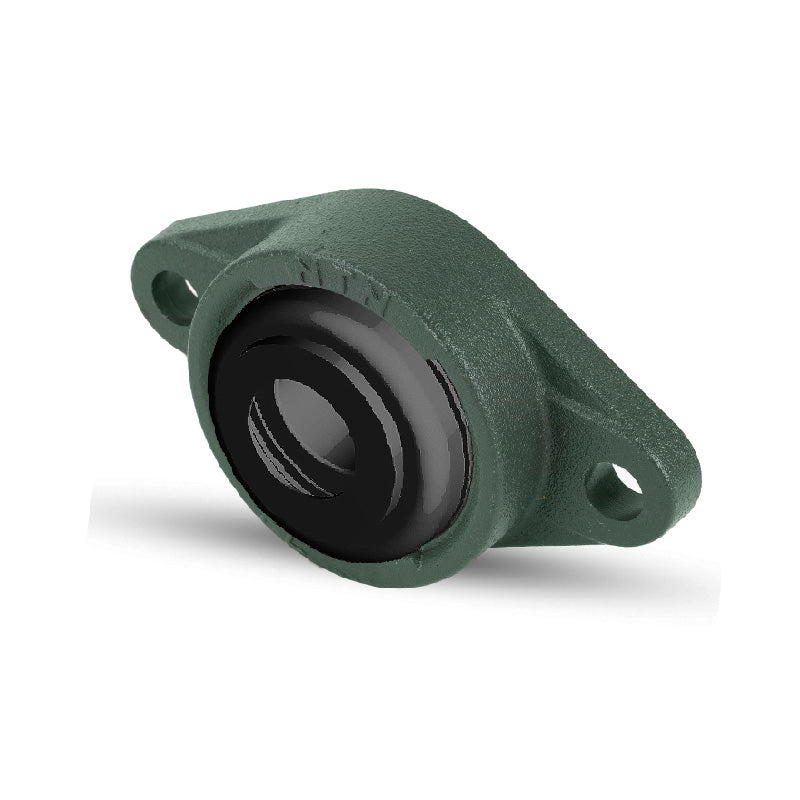

NTN S-UCFL210D1 Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
NTN S-UCFL210D1 Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
CHF 87.00
ex VAT
Regular price
Sale price
CHF 87.00
ex VAT
In stock
Price Break
3+
CHF 76.73
4+
CHF 73.63
9+
CHF 72.08
19+
CHF 69.76
49+
CHF 68.21
99+
CHF 64.33
499+
CHF 54.26
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCFL
- Bolt Hole Centres:
- 157mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| H | 197mm |
| J | 157mm |
| A<sub>2</sub> | 22mm |
| A<sub>1</sub> | 16mm |
| A | 40mm |
| N | 19mm |
| L | 115mm |
| B | 51.6mm |
| S | 19mm |
| A<sub>4</sub> | 65.5mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 39 kN |
| Static load C<sub>0r</sub> | 23.2 kN |
| Fatigue load limit C<sub>u</sub> | 1.82 kN |
| --- | Unit information |
| Mass | 2.1 kg |
