SKU: S7009ACDGA/P4A-SKF

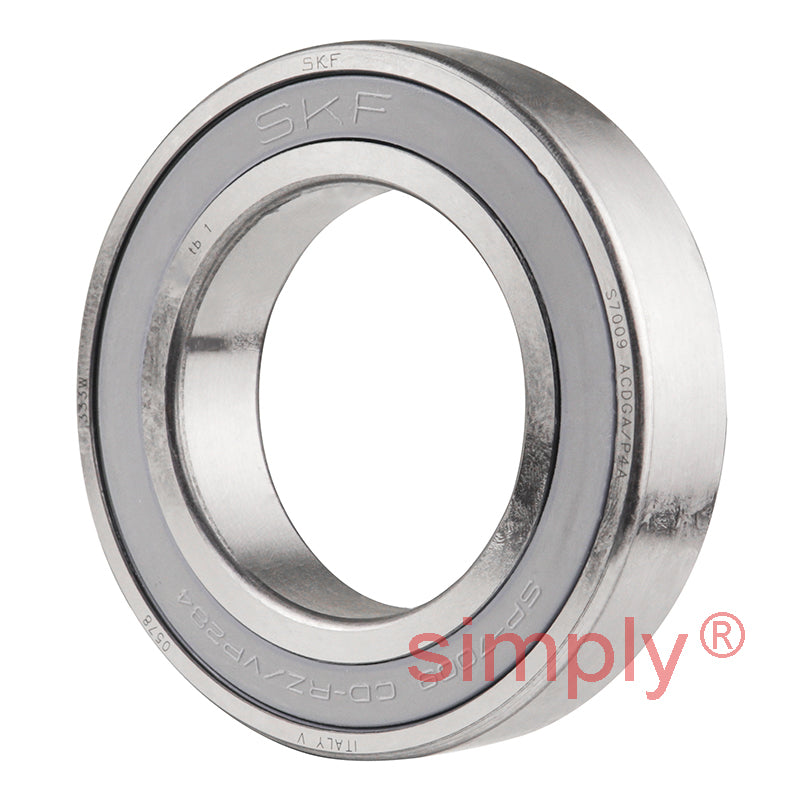

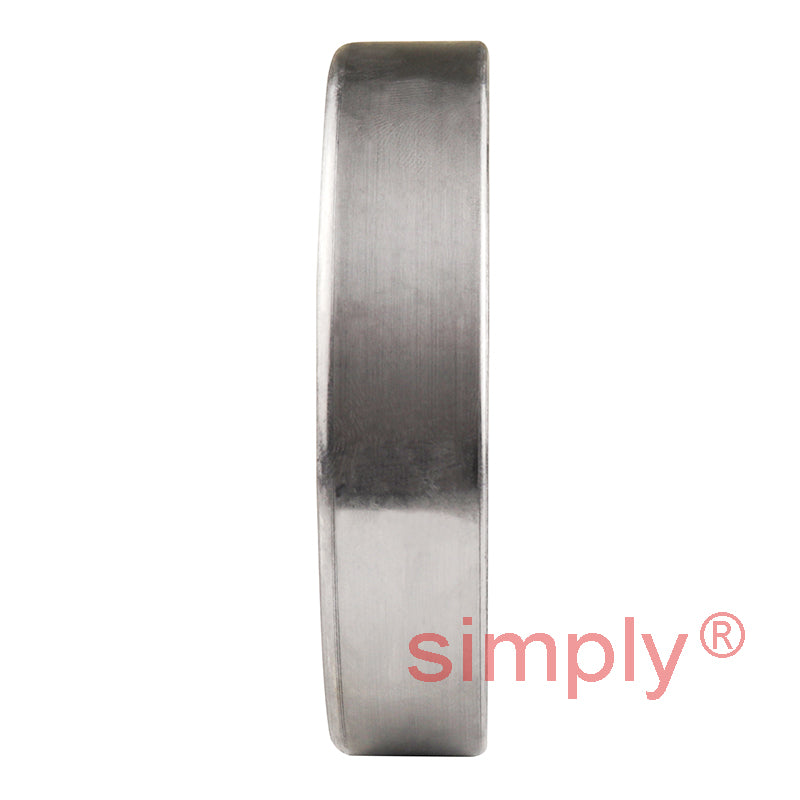

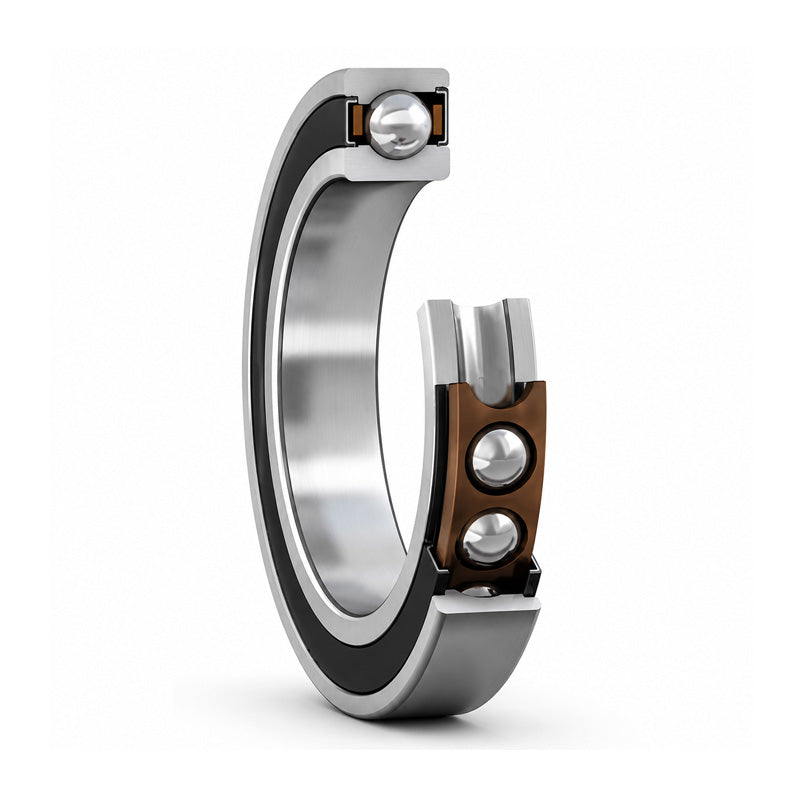

SKF S7009ACDGA/P4A Super Precision Sealed Angular Contact Spindle Bearing 45x75x16mm
SKF S7009ACDGA/P4A Super Precision Sealed Angular Contact Spindle Bearing 45x75x16mm
Regular price
CHF 250.52
ex VAT
Regular price
Sale price
CHF 250.52
ex VAT
In stock
Price Break
10+
CHF 222.96
19+
CHF 210.44
29+
CHF 207.93
39+
CHF 205.43
49+
CHF 202.92
74+
CHF 200.42
99+
CHF 187.89
199+
CHF 185.38
249+
CHF 182.88
499+
CHF 180.37
999+
CHF 175.36
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 75mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
- Style:
- Single Universal Matchable Bearing
- Contact Angle:
- 25 Degree contact angle
Technical
Technical
| d | 45mm |
|---|---|
| D | 75mm |
| B | 16mm |
| C | 27.6kN |
| Co | 21.6kN |
| Pu | 0.9kN |
| rpm in grease | 28000kN |
| rpm in grease | 28000 |
| rpm in oil-air | 43000 |
| d1 | 54.2mm |
| d2 | 54.2mm |
| D1 | mm |
| D2 | 68.3mm |
| r1 & r2 min | 1mm |
| r3 & r4 min | 0.3mm |
| da min | 49.6mm |
| db min | 49.6mm |
| Da max | 70.4mm |
| Db max | 73mm |
| ra max | 1mm |
| rb max | 0.3mm |
| dn | mm |
| Grease fill ref qty | cm<sup>3</sup> |
| Weight | 0.25kg |
