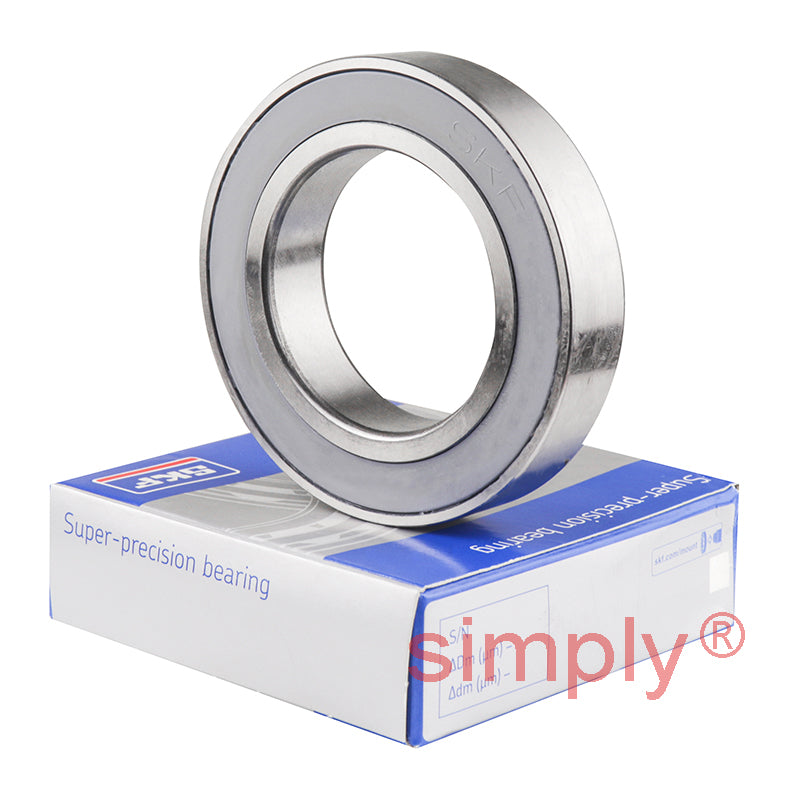

SKF S7206ACD/HCP4A Super Precision Sealed Angular Contact Spindle Bearing 30x62x16mm

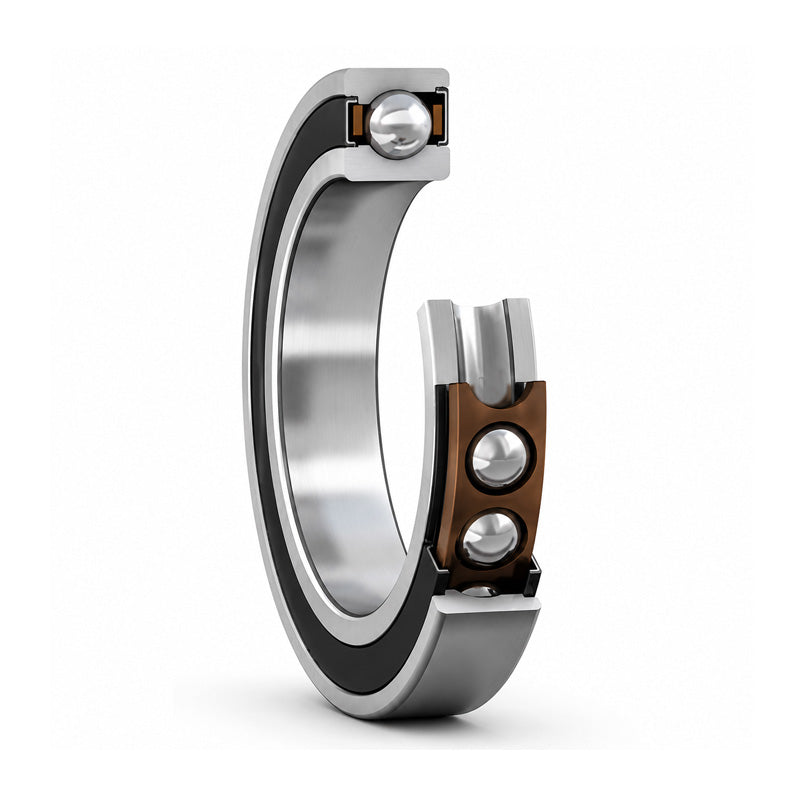

SKF Super Precision Sealed Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load-bearing capacity. Note: Load is applied in the direction of the inner raceways largest diameter (one side will be smaller than the other in diameter), in smaller bearings, this is difficult to check, in these cases, the thrust is applied from the side where the bearing number markings are not present.
In these bearings, the raceways are manufactured from chromium steel, the balls are manufactured from Silicon Nitride Si³N⁴
Please contact our Sales Support team if you need to check the specification before purchase.

Brand / Quality:

SKF - High Quality

Inside Diameter:

30mm

Outside Diameter:

62mm

Width:

16mm

Seals / Shields:

Rubber Sealed

Style:

Single Row Angular Contact Spindle Bearing

Contact Angle:

25 Degree contact angle
