SKU: SA.204-12

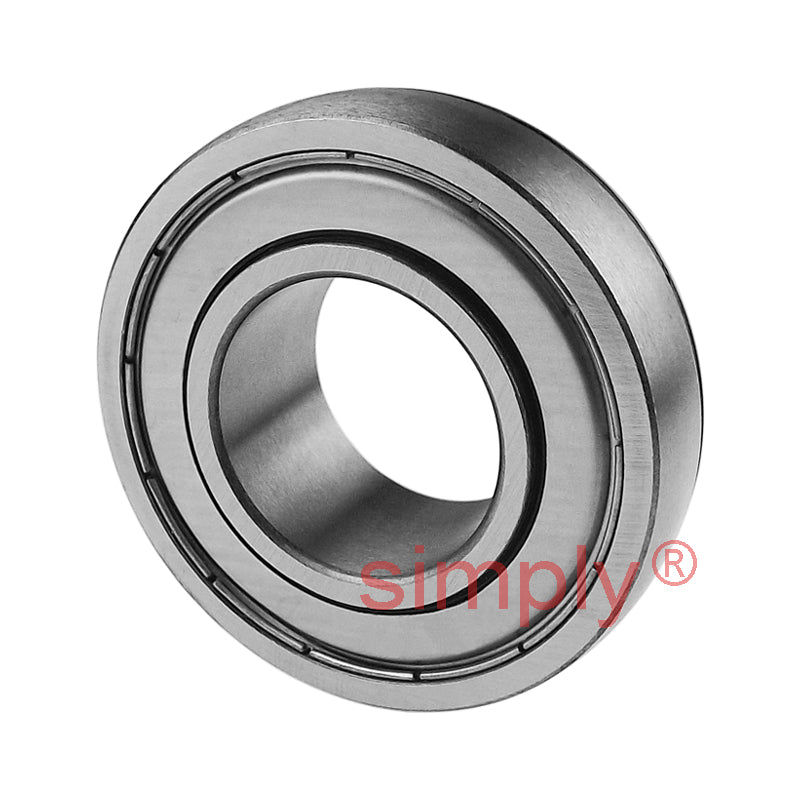

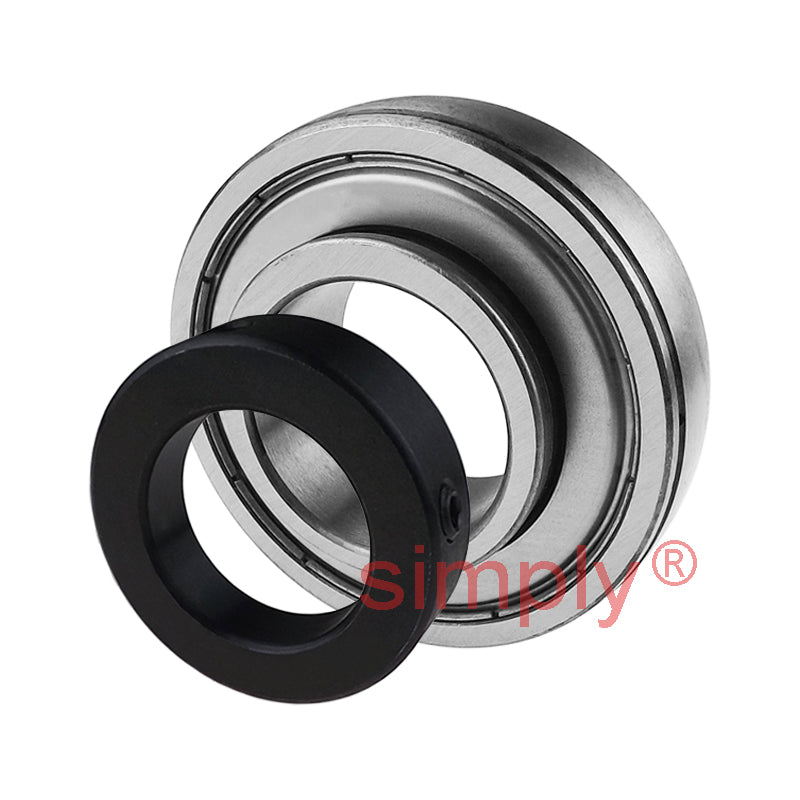

SA204-12 Imperial Bearing Insert with Locking Collar 3/4 inch Bore 47mm Outside Dia
SA204-12 Imperial Bearing Insert with Locking Collar 3/4 inch Bore 47mm Outside Dia
Regular price
CHF 7.73
ex VAT
Regular price
Sale price
CHF 7.73
ex VAT
In stock
Price Break
10+
CHF 6.88
19+
CHF 6.49
29+
CHF 6.42
39+
CHF 6.34
49+
CHF 6.26
74+
CHF 6.18
99+
CHF 5.80
199+
CHF 5.72
249+
CHF 5.64
499+
CHF 5.57
999+
CHF 5.41
Couldn't load pickup availability
Description
Description
|
SA or 12--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
- Style:
- SA
Technical
Technical
| d | 3/4 inch |
|---|---|
| Be | 14mm |
| D | 47mm |
| z | 21.5mm |
| n | 7.0mm |
| m | 14.5mm |
| Bi | 31mm |
| k | 33.3mm |
| H | 13.5mm |
| G | 5mm |
| h | 3.9mm |
| Grub screw | 1/4"-28UNF |
| Weight | 0.15 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Rec max speed | 7450 rpm |
