SKU: SA.209-26

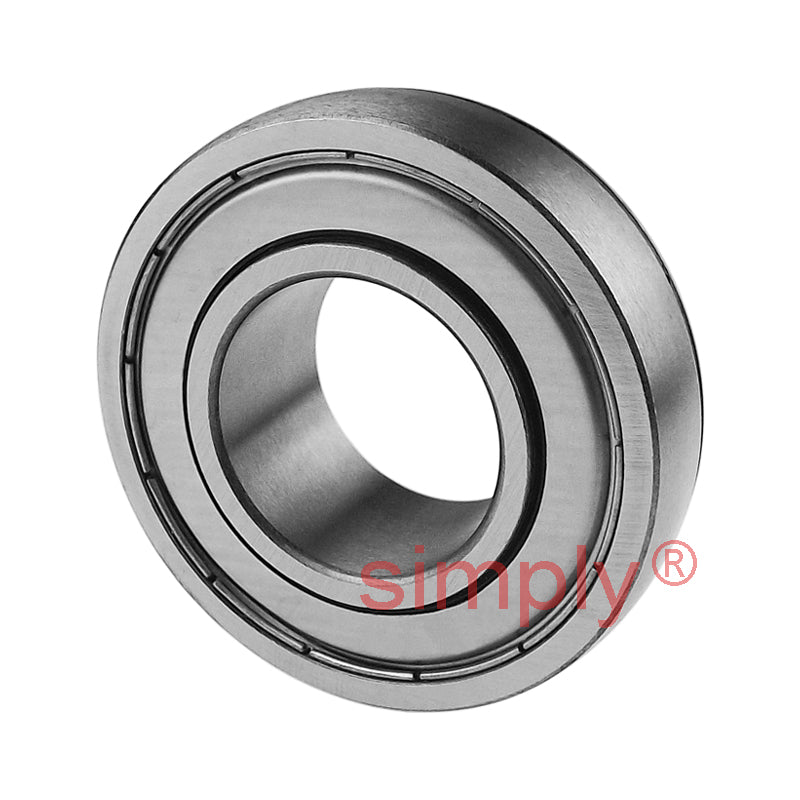

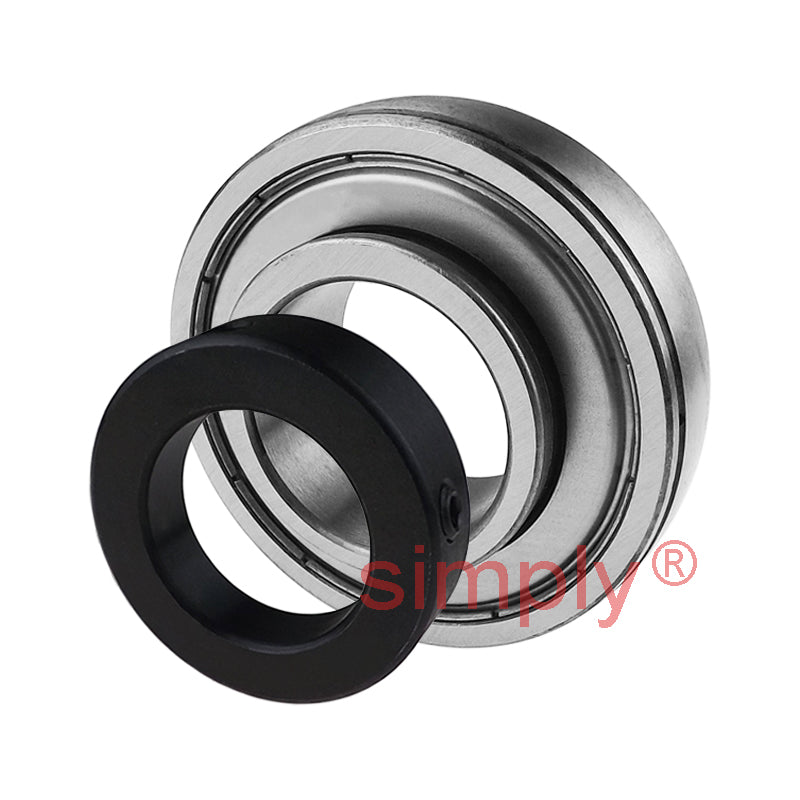

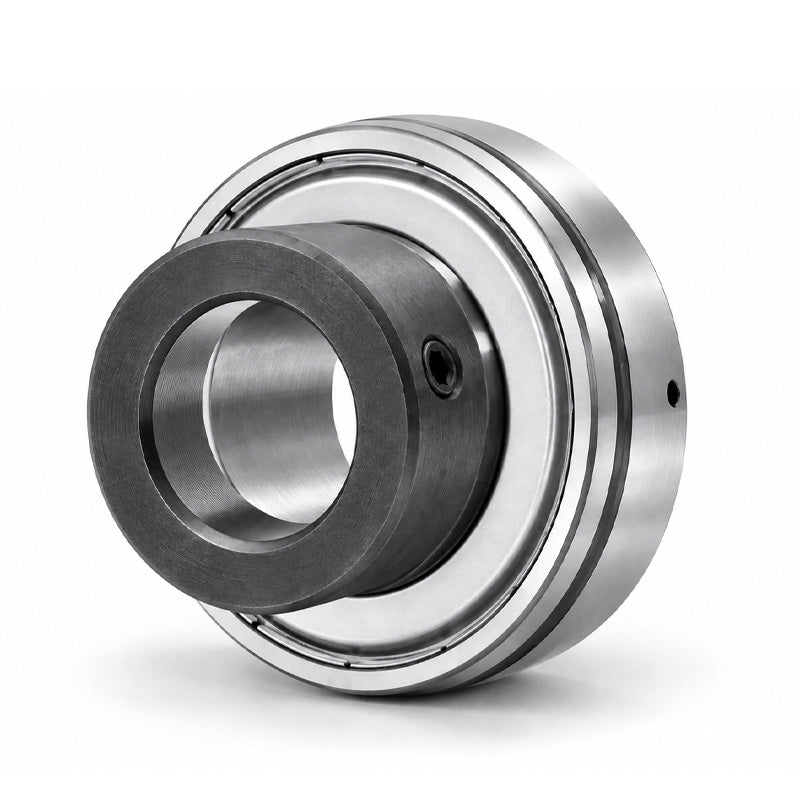

SA209-26 Imperial Bearing Insert with Locking Collar 1-5/8 inch Bore 85mm Outside Dia
SA209-26 Imperial Bearing Insert with Locking Collar 1-5/8 inch Bore 85mm Outside Dia
Regular price
CHF 30.00
ex VAT
Regular price
Sale price
CHF 30.00
ex VAT
In stock
Price Break
3+
CHF 23.79
4+
CHF 22.45
9+
CHF 22.19
19+
CHF 21.92
49+
CHF 21.65
99+
CHF 21.38
499+
CHF 20.05
999+
CHF 19.78
1999+
CHF 19.51
2999+
CHF 19.25
4999+
CHF 18.71
Share this product
Description
Description
|
SA or 12--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Outside Diameter:
- 85mm
- Style:
- SA
Technical
Technical
| d | 1-5/8 inch |
|---|---|
| Be | 19mm |
| D | 85mm |
| z | 30.2mm |
| n | 9.5mm |
| m | 20.7mm |
| Bi | 43.7mm |
| k | 63.5mm |
| H | 18.3mm |
| G | 6.5mm |
| h | 6.3mm |
| Grub screw | 5/16"-24UNF |
| Weight | 0.73 kg |
| Dynamic load | 3300 kgf |
| Static load | 2100 kgf |
| Rec max speed | 3700 rpm |
