SKU: SA.209-27G

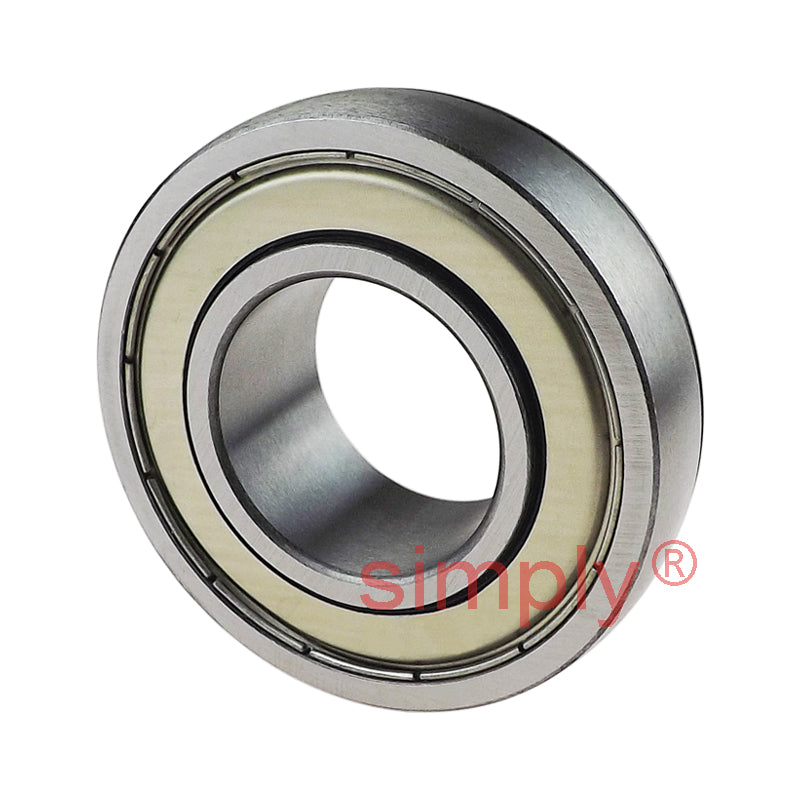

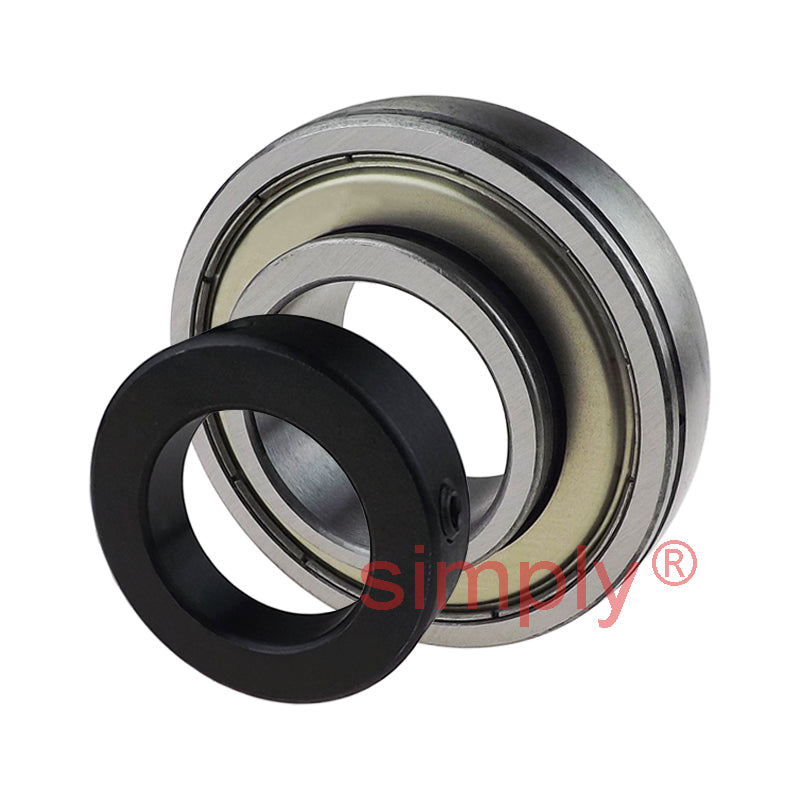

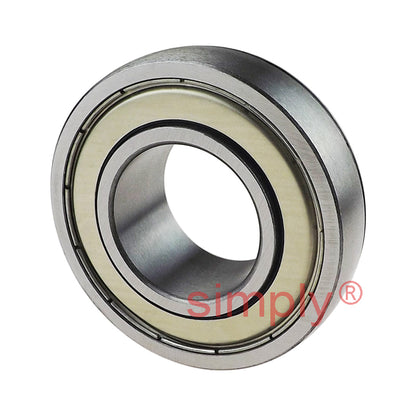

SA209-27G Imperial Bearing Insert with Locking Collar 1-11/16 inch Bore 85mm Outside Dia
SA209-27G Imperial Bearing Insert with Locking Collar 1-11/16 inch Bore 85mm Outside Dia
Regular price
CHF 39.73
ex VAT
Regular price
Sale price
CHF 39.73
ex VAT
In stock
Price Break
5+
CHF 39.33
10+
CHF 37.74
20+
CHF 36.95
50+
CHF 35.76
100+
CHF 34.96
500+
CHF 32.98
1000+
CHF 27.81
Couldn't load pickup availability
Description
Description
|
SA or 12--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Outside Diameter:
- 85mm
- Style:
- SA
- Type:
- Spherical Outer
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| Be | 19mm |
| D | 85mm |
| z | 30.2mm |
| n | 9.5mm |
| m | 20.7mm |
| Bi | 43.7mm |
| k | 63.5mm |
| H | 18.3mm |
| G | 6.5mm |
| h | 6.3mm |
| Grub screw | 5/16"-24UNF |
| Weight | 0.73 kg |
| Dynamic load | 3300 kgf |
| Static load | 2100 kgf |
