SKU: SA.211-32

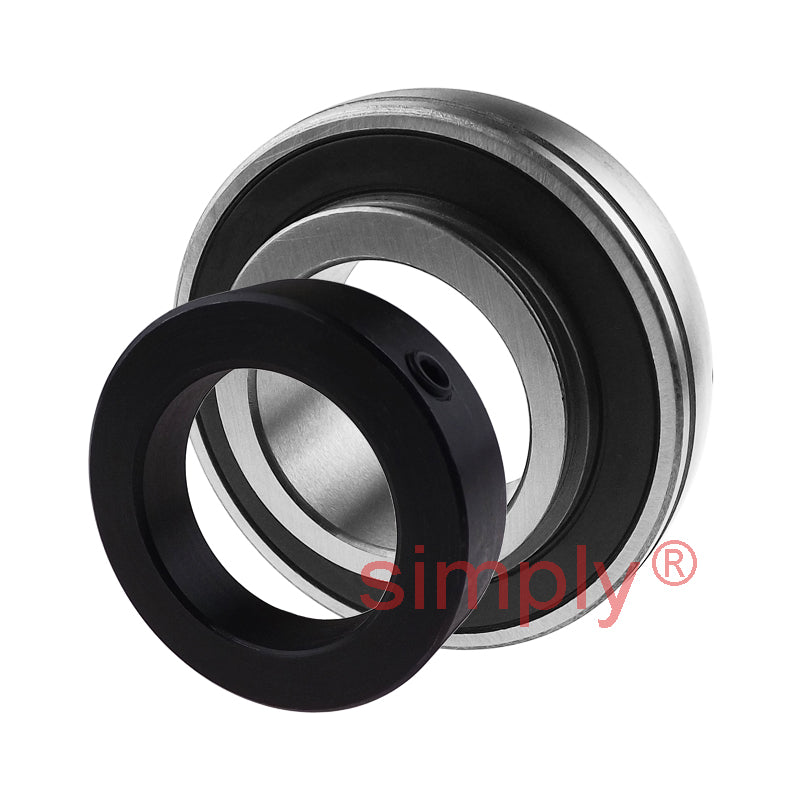

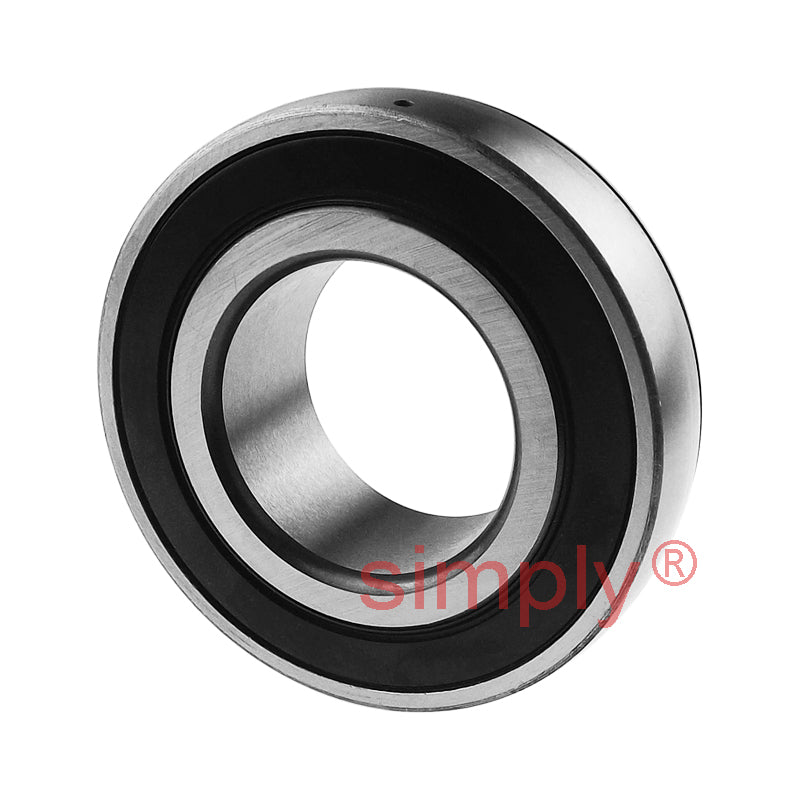

SA211-32 Imperial Bearing Insert with Locking Collar 2 inch Bore 100mm Outside Dia
SA211-32 Imperial Bearing Insert with Locking Collar 2 inch Bore 100mm Outside Dia
Regular price
CHF 16.95
ex VAT
Regular price
Sale price
CHF 16.95
ex VAT
In stock
Price Break
10+
CHF 15.09
19+
CHF 14.24
29+
CHF 14.07
39+
CHF 13.90
49+
CHF 13.73
74+
CHF 13.56
99+
CHF 12.71
199+
CHF 12.54
249+
CHF 12.37
499+
CHF 12.20
999+
CHF 11.87
Couldn't load pickup availability
Description
Description
|
SA or 12--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 100mm
- Style:
- SA
Technical
Technical
| d | 2 inch |
|---|---|
| Be | 24mm |
| D | 100mm |
| z | 32.4mm |
| n | 12mm |
| m | 20.4mm |
| Bi | 48.4mm |
| k | 76.2mm |
| H | 20.7mm |
| G | 8mm |
| h | 7.2mm |
| Grub screw | 3/8"-24UNF |
| Weight | 0.87 kg |
| Dynamic load | 4400 kgf |
| Static load | 3000 kgf |
