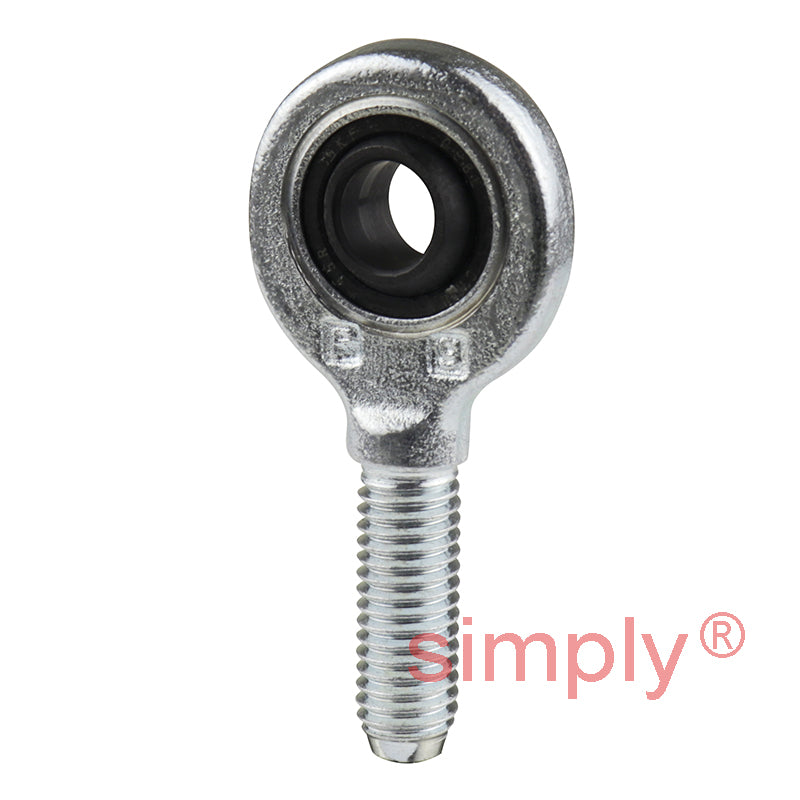

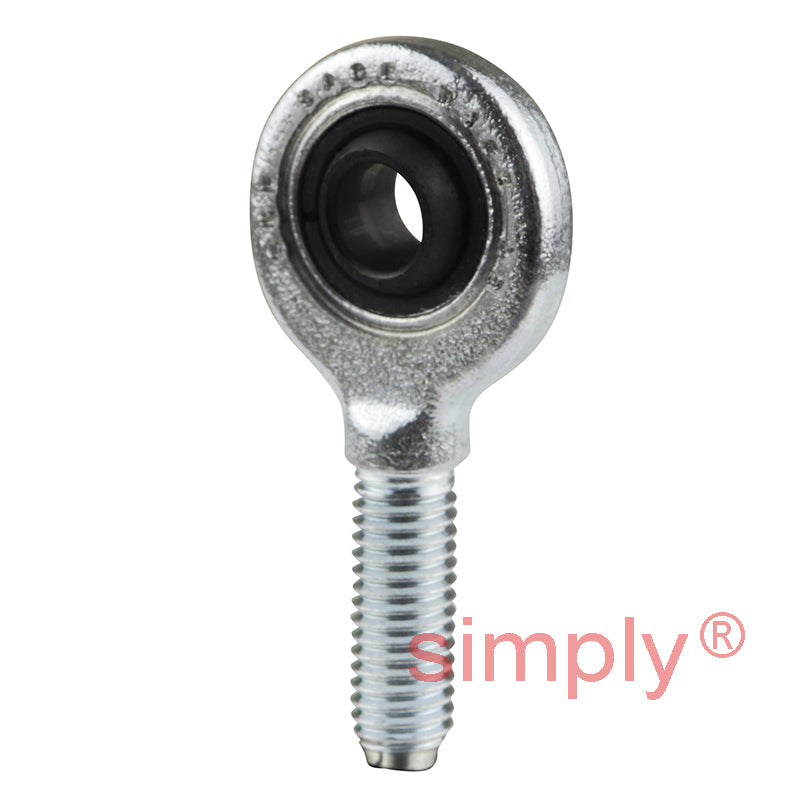

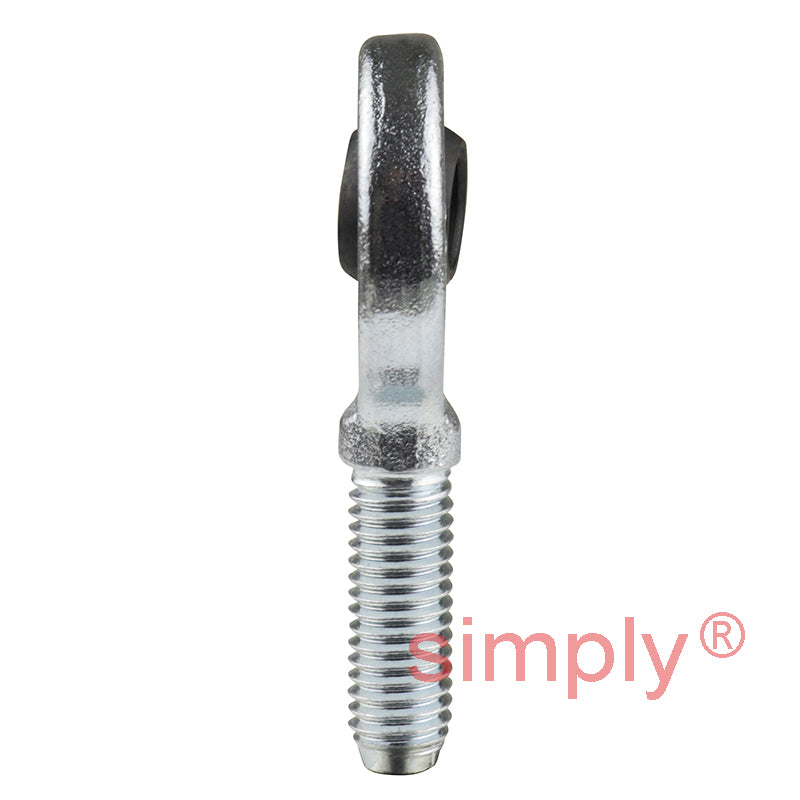

SKF SA8E Right Hand Steel / Steel Plain Male Rod End M8 Thread
SKF SA8E Right Hand Steel / Steel Plain Male Rod End M8 Thread
Regular price
CHF 30.00
ex VAT
Regular price
Sale price
CHF 30.00
ex VAT
Equivalent to: GAR8DO GAR8E SA8
In stock
Price Break
10+
CHF 23.87
19+
CHF 22.53
29+
CHF 22.26
39+
CHF 22.00
49+
CHF 21.73
74+
CHF 21.46
99+
CHF 20.12
199+
CHF 19.85
249+
CHF 19.58
499+
CHF 19.31
999+
CHF 18.78
Description
Description
|
SKF SA..E Series Rod End Bearings: This series is classed as rod end bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these rod end bearings are unsealed and require maintenance from time to time, there is no dedicated lubrication point provided thus lubrication in the form of re-lubrication from the sides of the ball is required. These are metric sized male rod end bearings. They are made of heat treatable C45V steel and zinc coated and chromatized and will operate within -50 deg C to +200 deg C. Available in Right or Left hand threads, the Left hand threaded version has a letter L in the part number to denote the difference. Application: Suitable for heavy static or alternating loads, shock loads. Benefits: Re-lubricate-able, cleanable. |
Equivalent: GAR8DO GAR8E SA8
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M8
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 8mm
Technical
Technical
| d | 8mm |
|---|---|
| d2 max | 25mm |
| G | M8 |
| B | 8mm |
| C1 max | 6.5mm |
| h | 42mm |
| a | 15deg |
| Dynamic load C | 5.5 kN |
| Static load Co | 12.9 kN |
| Weight | 0.029 kg |
| dk | 13mm |
| l1 min | 21mm |
| l2 max | 56mm |
| l7 min | 11mm |
| r1 min | 0.3mm |
