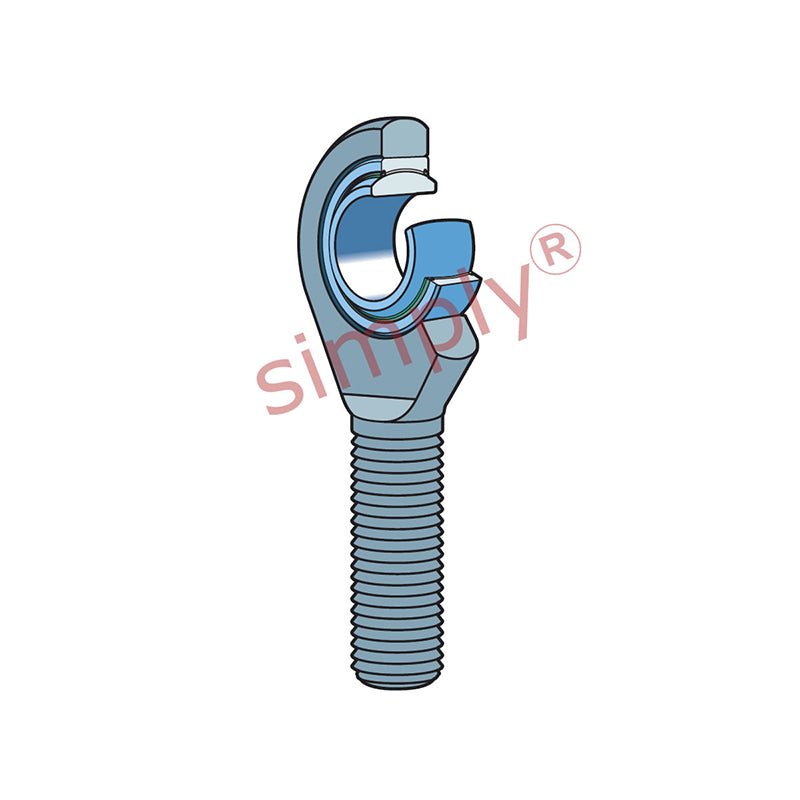

SKF SAA40TXE2LS Right Hand Steel / PTFE Fabric Lined Plain Male Rod End M39x3 Thread
SKF SAA40TXE2LS Right Hand Steel / PTFE Fabric Lined Plain Male Rod End M39x3 Thread
Regular price
CHF 285.00
ex VAT
Regular price
Sale price
CHF 285.00
ex VAT
In stock
Price Break
10+
CHF 226.52
19+
CHF 213.79
29+
CHF 211.25
39+
CHF 208.70
49+
CHF 206.16
74+
CHF 203.61
99+
CHF 190.89
199+
CHF 188.34
249+
CHF 185.80
499+
CHF 183.25
999+
CHF 178.16
Description
Description
|
SKF SA..TXE2LS Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE fabric these rod end bearings are triple heavy duty sealed on both sides of the bearing and will operate within -40deg C to +110 deg C, load carrying capacity will be reduced over +65 degrees C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. The SAA ..TXE2LS differ in thread diameters and housing heights. Application: Suitable for very heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE Fabric |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M39x3
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 40mm
- Material:
- PTFE Fabric Lined
Technical
Technical
| d | 40mm |
|---|---|
| d2 max | 94mm |
| G | M39x3 |
| B | 28mm |
| C1 max | 24mm |
| h | 150mm |
| a | 6deg |
| Dynamic load C | 280 kN |
| Static load Co | 140 kN |
| Weight | 1.85 kg |
| dk | 53mm |
| l1 min | 86mm |
| l2 max | 199mm |
| l7 min | 46mm |
| r1 min | 0.6mm |
