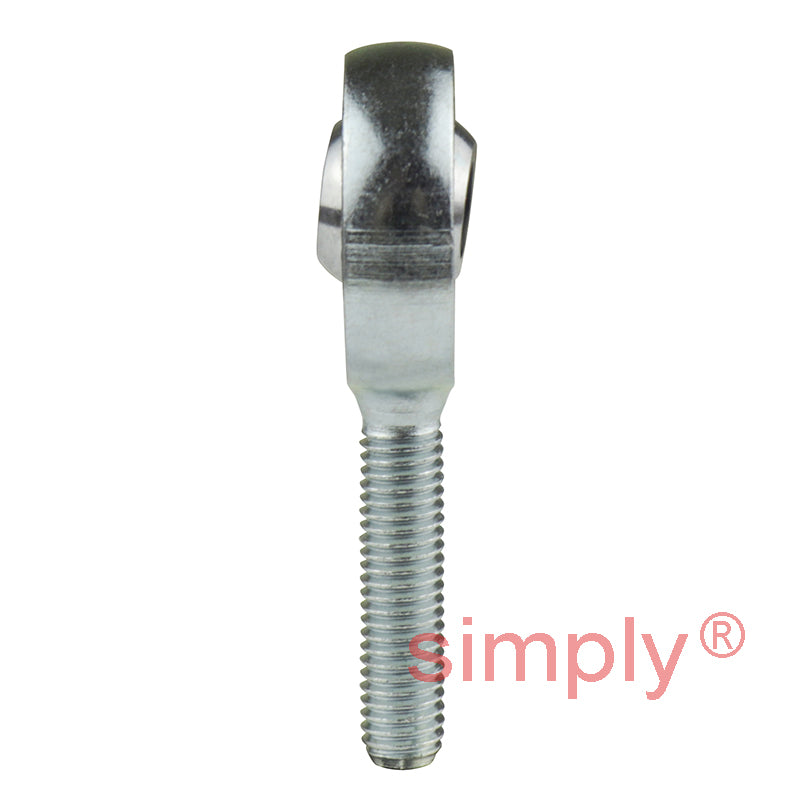

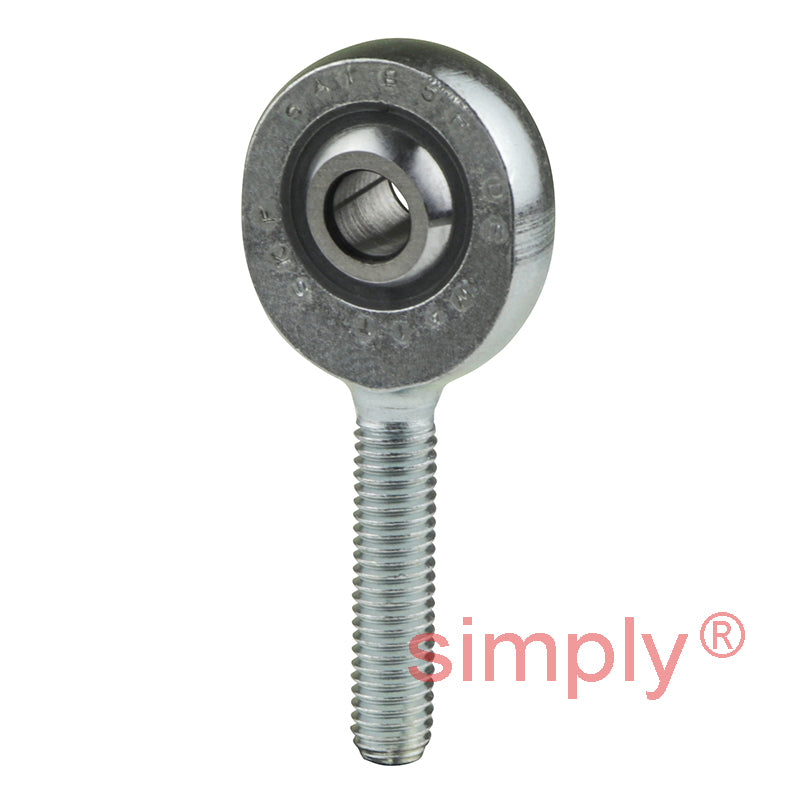

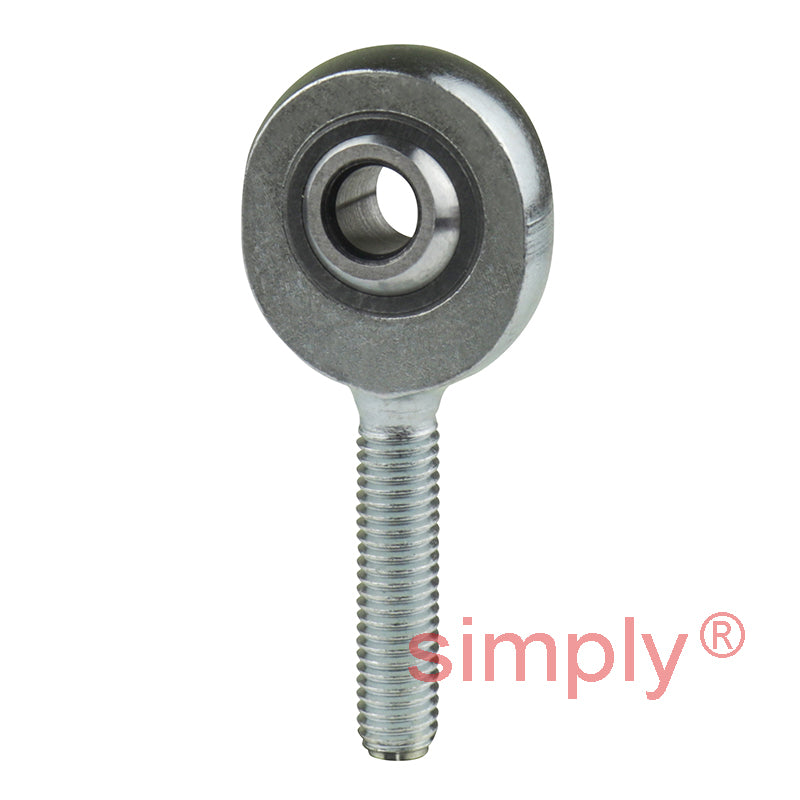

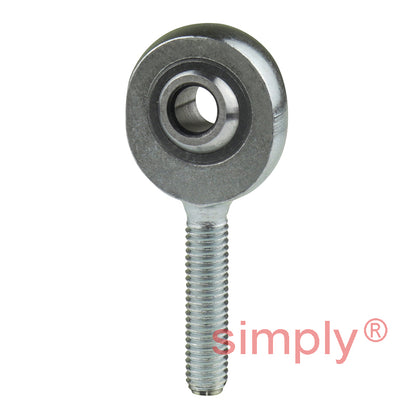

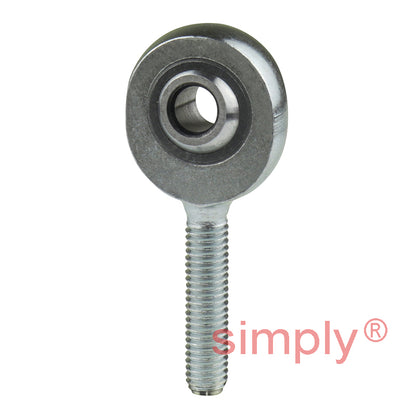

SKF SAKB5F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M5 Thread
SKF SAKB5F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M5 Thread
Regular price
CHF 31.00
ex VAT
Regular price
Sale price
CHF 31.00
ex VAT
Equivalent to: MS-M05
In stock
Price Break
10+
CHF 24.66
19+
CHF 23.28
29+
CHF 23.00
39+
CHF 22.72
49+
CHF 22.45
74+
CHF 22.17
99+
CHF 20.78
199+
CHF 20.51
249+
CHF 20.23
499+
CHF 19.95
999+
CHF 19.40
Description
Description
|
SKF SAKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
Equivalent: MS-M05
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M5
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 5mm
- Material:
- PTFE FRP Lined
Technical
Technical
| d | 5mm |
|---|---|
| d2 max | 19mm |
| G | M5 |
| B | 8mm |
| C1 max | 6mm |
| h | 33mm |
| a | 13deg |
| Dynamic load C | 3.25 kN |
| Static load Co | 5.3 kN |
| Weight | 0.018 kg |
| dk | 11.1mm |
| l1 min | 19mm |
| l2 max | 44mm |
| r1 min | 0.3mm |
