SKU: SAL35TXE-2LS-SKF

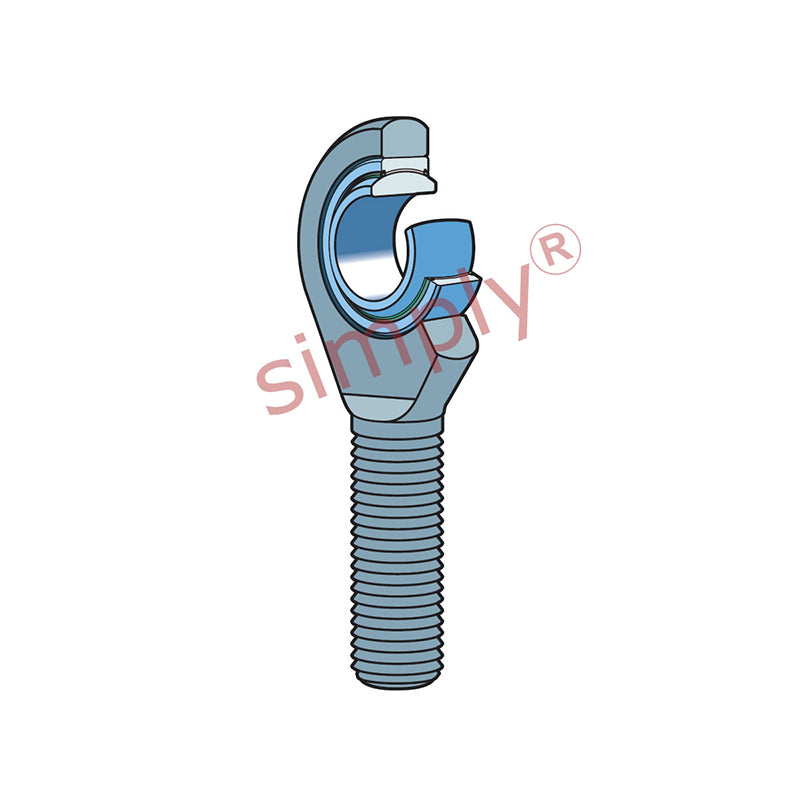

SKF SAL35TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Male Rod End M36x3 Thread
SKF SAL35TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Male Rod End M36x3 Thread
Regular price
CHF 169.00
ex VAT
Regular price
Sale price
CHF 169.00
ex VAT
In stock
Price Break
10+
CHF 134.02
19+
CHF 126.49
29+
CHF 124.98
39+
CHF 123.47
49+
CHF 121.97
74+
CHF 120.46
99+
CHF 112.93
199+
CHF 111.43
249+
CHF 109.92
499+
CHF 108.42
999+
CHF 105.41
Description
Description
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M36x3
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 35mm
- Material:
- PTFE Fabric Lined
Technical
Technical
| d | 35mm |
|---|---|
| d2 max | 84mm |
| G | M36x3 |
| B | 25mm |
| C1 max | 22mm |
| h | 130mm |
| a | 6deg |
| Dynamic load C | 224 kN |
| Static load Co | 110 kN |
| Weight | 1.3 kg |
| dk | 47mm |
| l1 min | 82mm |
| l2 max | 174mm |
| l7 min | 40mm |
| r1 min | 0.6mm |
