SKU: SALKAC10M-CDX

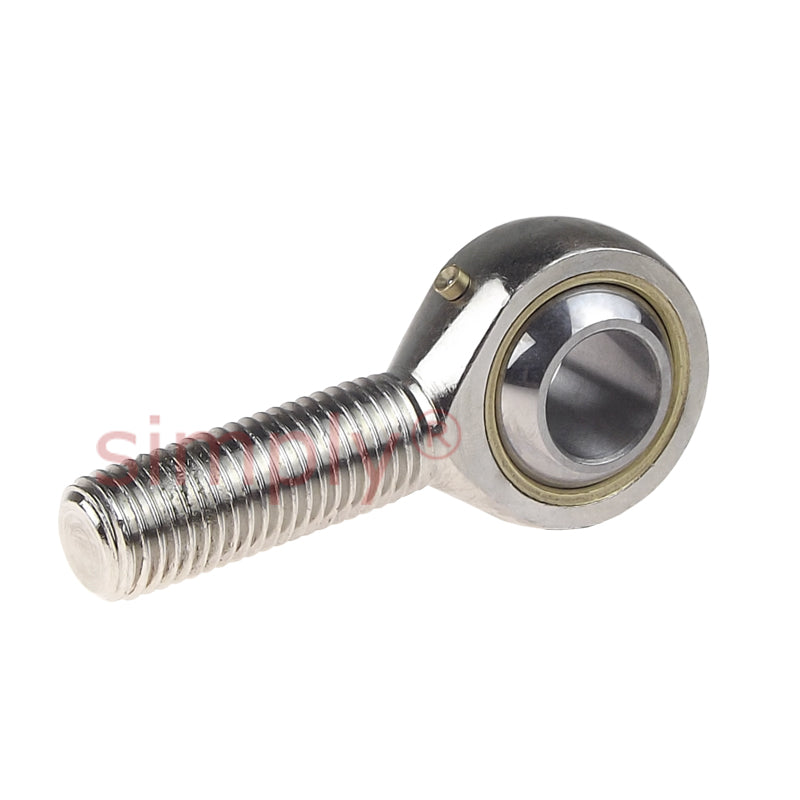

Codex SALKAC10M Left Hand Steel / Bronze Lined Plain Male Rod End M10 Thread
Codex SALKAC10M Left Hand Steel / Bronze Lined Plain Male Rod End M10 Thread
Regular price
CHF 15.00
ex VAT
Regular price
Sale price
CHF 15.00
ex VAT
Equivalent to: POS10L MBL-M10
In stock
Price Break
10+
CHF 11.83
19+
CHF 11.16
29+
CHF 11.03
39+
CHF 10.90
49+
CHF 10.77
74+
CHF 10.63
99+
CHF 9.97
199+
CHF 9.84
249+
CHF 9.70
499+
CHF 9.57
999+
CHF 9.30
Description
Description
|
SAKAC..M Series Rod End Bearings: These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Equivalent: POS10L MBL-M10
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M10
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 10mm
- Material:
- Bronze Lined
Technical
Technical
| d | 10mm |
|---|---|
| d2 max | 29mm |
| G | M10 |
| B | 14mm |
| C1 max | 10.5mm |
| h1 | 48mm |
| Max misalignment angle | 13 degrees |
| Dynamic load | 10 kN |
| Static load | 10.8 kN |
| dk | 19mm |
| l1 min | 28mm |
| l2 max | 64mm |
| r1 min | 0.3mm |
| Weight | 0.054 kg |
