SKU: SALKAC18M-CDX

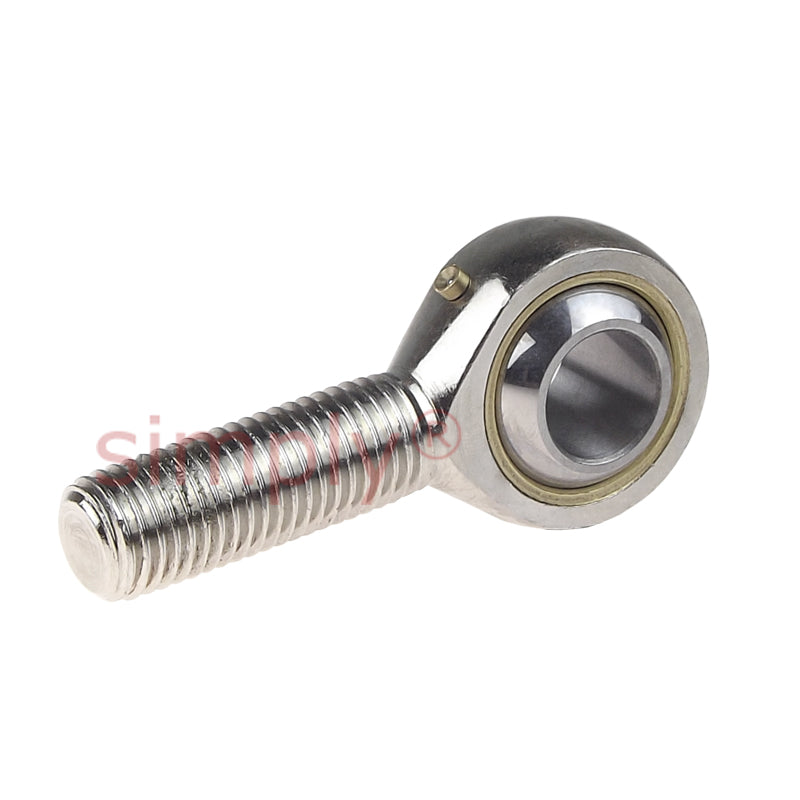

Codex SALKAC18M Left Hand Steel / Bronze Lined Plain Male Rod End M18x1.5 Thread
Codex SALKAC18M Left Hand Steel / Bronze Lined Plain Male Rod End M18x1.5 Thread
Regular price
CHF 26.00
ex VAT
Regular price
Sale price
CHF 26.00
ex VAT
Equivalent to: POS18L MBL-M18
In stock
Price Break
10+
CHF 20.65
19+
CHF 19.49
29+
CHF 19.26
39+
CHF 19.03
49+
CHF 18.80
74+
CHF 18.56
99+
CHF 17.40
199+
CHF 17.17
249+
CHF 16.94
499+
CHF 16.71
999+
CHF 16.24
Description
Description
|
SAKAC..M Series Rod End Bearings: These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Equivalent: POS18L MBL-M18
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M18x1.5
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 18mm
- Material:
- Bronze Lined
Technical
Technical
| d | 18mm |
|---|---|
| d2 max | 47mm |
| G | M18x1.5 |
| B | 23mm |
| C1 max | 16.5mm |
| h1 | 72mm |
| Max misalignment angle | 15 degrees |
| Dynamic load | 26 kN |
| Static load | 29 kN |
| dk | 31.7mm |
| l1 min | 41mm |
| l2 max | 97mm |
| r1 min | 0.3mm |
| Weight | 0.26 kg |
