SKU: SALKAC20M-CDX

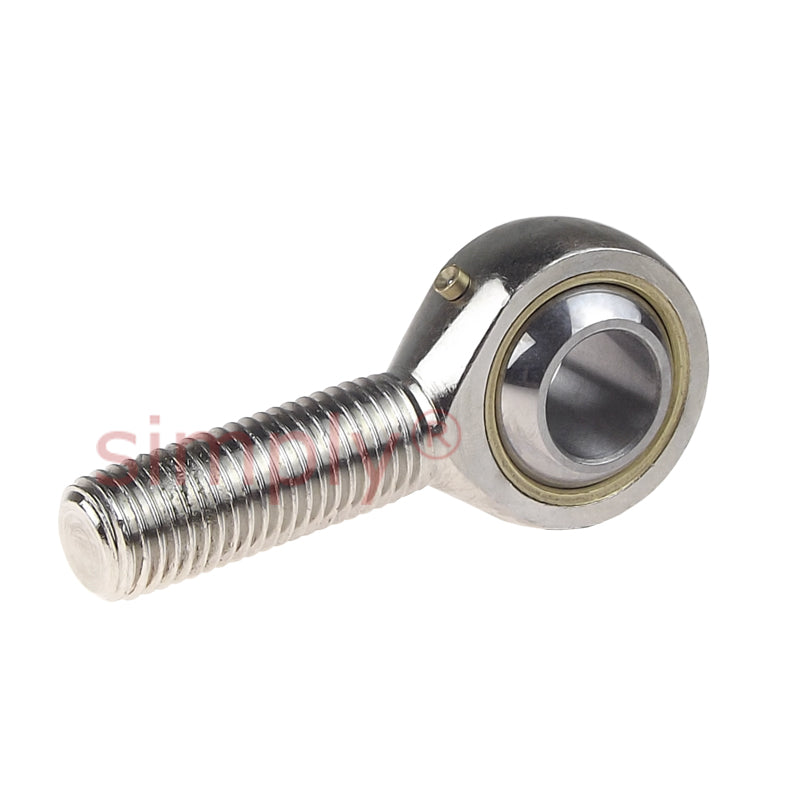

Codex SALKAC20M Left Hand Steel / Bronze Lined Plain Male Rod End M20x1.5 Thread
Codex SALKAC20M Left Hand Steel / Bronze Lined Plain Male Rod End M20x1.5 Thread
Regular price
CHF 35.00
ex VAT
Regular price
Sale price
CHF 35.00
ex VAT
Equivalent to: POS20L MBL-M20
In stock
Price Break
10+
CHF 27.59
19+
CHF 26.04
29+
CHF 25.73
39+
CHF 25.42
49+
CHF 25.11
74+
CHF 24.80
99+
CHF 23.25
199+
CHF 22.94
249+
CHF 22.63
499+
CHF 22.32
999+
CHF 21.70
Description
Description
|
SAKAC..M Series Rod End Bearings: These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Equivalent: POS20L MBL-M20
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M20x1.5
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 20mm
- Material:
- Bronze Lined
Technical
Technical
| d | 20mm |
|---|---|
| d2 max | 51mm |
| G | M20x1.5 |
| B | 25mm |
| C1 max | 18mm |
| h1 | 78mm |
| Max misalignment angle | 14 degrees |
| Dynamic load | 29 kN |
| Static load | 29 kN |
| dk | 34.9mm |
| l1 min | 45mm |
| l2 max | 106mm |
| r1 min | 0.3mm |
| Weight | 0.34 kg |
