SKU: SALKAC25M-CDX

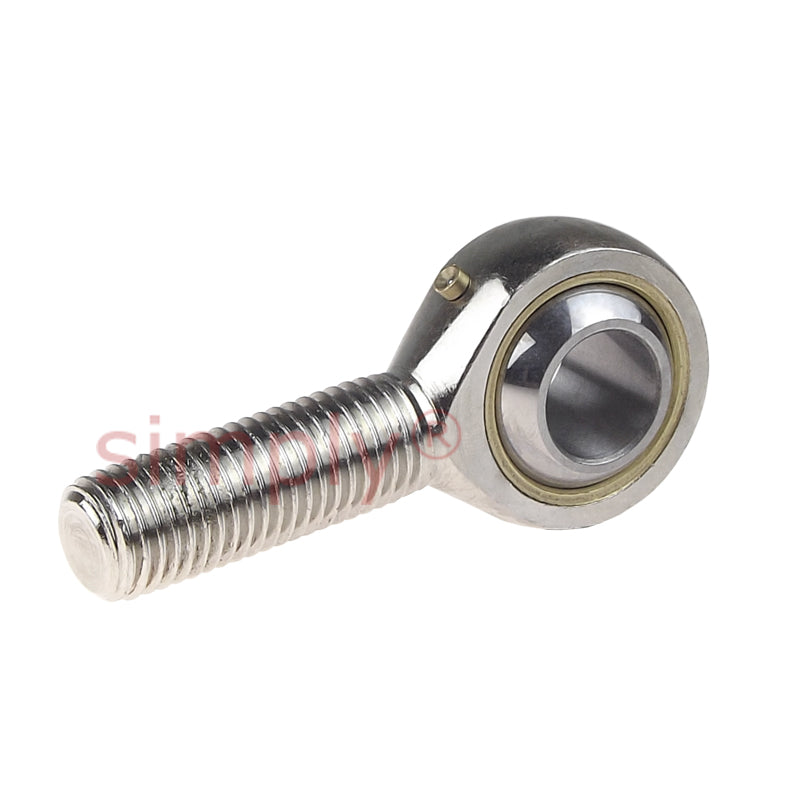

Codex SALKAC25M Left Hand Steel / Bronze Lined Plain Male Rod End M24x2 Thread
Codex SALKAC25M Left Hand Steel / Bronze Lined Plain Male Rod End M24x2 Thread
Regular price
CHF 55.00
ex VAT
Regular price
Sale price
CHF 55.00
ex VAT
Equivalent to: POS25L MBL-M25
In stock
Price Break
10+
CHF 43.36
19+
CHF 40.93
29+
CHF 40.44
39+
CHF 39.95
49+
CHF 39.46
74+
CHF 38.98
99+
CHF 36.54
199+
CHF 36.05
249+
CHF 35.57
499+
CHF 35.08
999+
CHF 34.11
Description
Description
|
SAKAC..M Series Rod End Bearings: These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Equivalent: POS25L MBL-M25
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M24x2
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 25mm
- Material:
- Bronze Lined
Technical
Technical
| d | 25mm |
|---|---|
| d2 max | 61mm |
| G | M24x2 |
| B | 31mm |
| C1 max | 22mm |
| h1 | 94mm |
| Max misalignment angle | 15 degrees |
| Dynamic load | 46.5 kN |
| Static load | 46.5 kN |
| dk | 42.8mm |
| l1 min | 55mm |
| l2 max | 127mm |
| r1 min | 0.3mm |
| Weight | 0.6 kg |
