SKU: SALKB12F-SKF

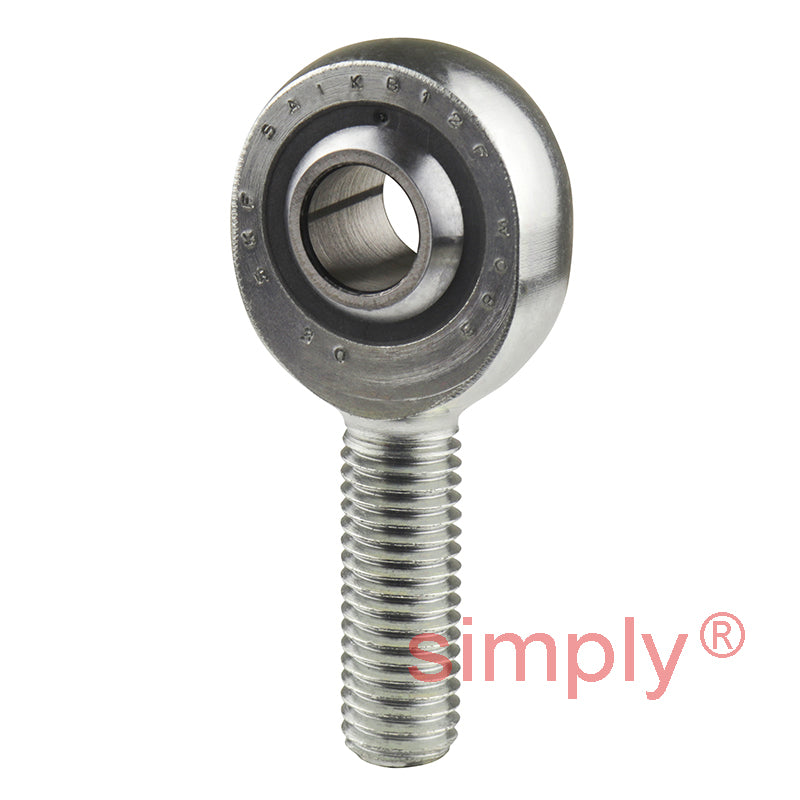

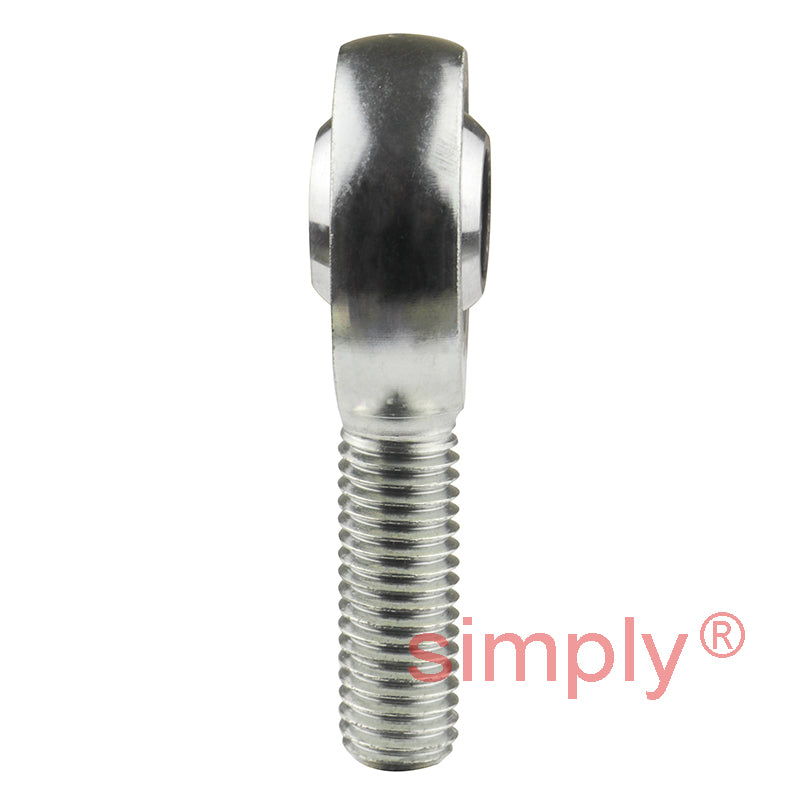

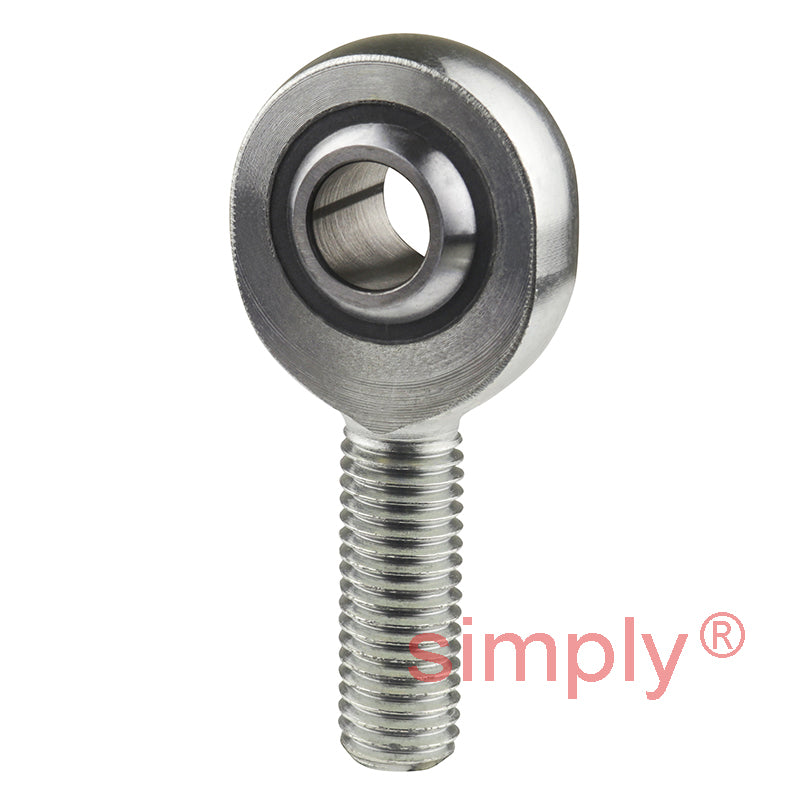

SKF SALKB12F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M12 Thread
SKF SALKB12F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M12 Thread
Regular price
CHF 39.00
ex VAT
Regular price
Sale price
CHF 39.00
ex VAT
Equivalent to: MSL-M12
In stock
Price Break
10+
CHF 30.48
19+
CHF 28.77
29+
CHF 28.43
39+
CHF 28.09
49+
CHF 27.74
74+
CHF 27.40
99+
CHF 25.69
199+
CHF 25.35
249+
CHF 25.00
499+
CHF 24.66
999+
CHF 23.98
Description
Description
|
SKF Left Hand Thread Male Rod End: Maintenance-free rod ends with male, thread with sliding contact surface combination steel/PTFE composite. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE composite |
Equivalent: MSL-M12
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M12
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 12mm
- Material:
- PTFE FRP Lined
Technical
Technical
| d | 12mm |
|---|---|
| d2 max | 33mm |
| G | M12 |
| B | 16mm |
| C1 max | 12mm |
| h | 54mm |
| a | 13deg |
| Dynamic load C | 13.2 kN |
| Static load Co | 15 kN |
| Weight | 0.1 kg |
| dk | 22.2mm |
| l1 min | 32mm |
| l2 max | 72mm |
| r1 min | 0.3mm |
