SKU: SAPF208-24.RND

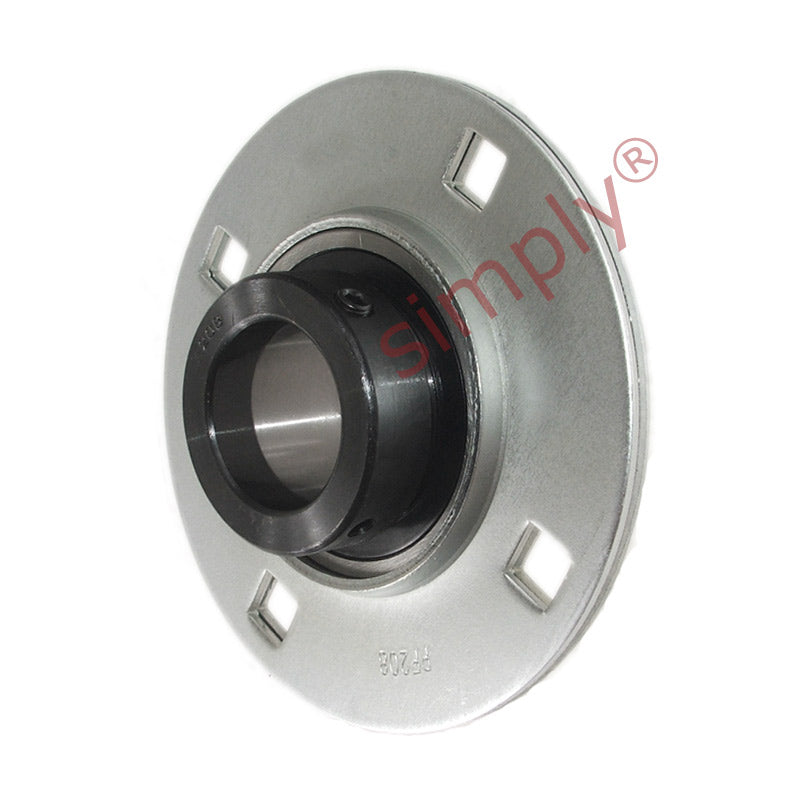

SAPF208-24 Round 4 Bolt Pressed Steel Bearing Housing with 1-1/2 inch Collar Insert
SAPF208-24 Round 4 Bolt Pressed Steel Bearing Housing with 1-1/2 inch Collar Insert
Regular price
CHF 24.00
ex VAT
Regular price
Sale price
CHF 24.00
ex VAT
Equivalent to: SLFE1-1/2EC
In stock
Price Break
3+
CHF 19.11
4+
CHF 18.04
9+
CHF 17.82
19+
CHF 17.61
49+
CHF 17.39
99+
CHF 17.18
499+
CHF 16.10
999+
CHF 15.89
1999+
CHF 15.67
2999+
CHF 15.46
4999+
CHF 15.03
Description
Description
|
4 Bolt Round Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has an eccentric collar and grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, collar & grub screw fixing Note: Bearing units of 40mm / 1-1/2 or larger have 4 bolt holes |
Equivalent: SLFE1-1/2EC
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- SAPF
- Pitch Circle Diameter:
- 122mm
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| a | 150mm |
| e | 122mm |
| m | 21mm |
| s | 13.5mm |
| t | 6.8mm |
| f | 91mm |
| B | 43.7mm |
| n | 11mm |
| Bolt | 1/2 inch |
| Weight | 1.15 kg |
| d1 | 60.3mm |
| Dynamic load | 2560 N |
| Static load | 1810 N |
