SKU: SAPFL206-19.OVL

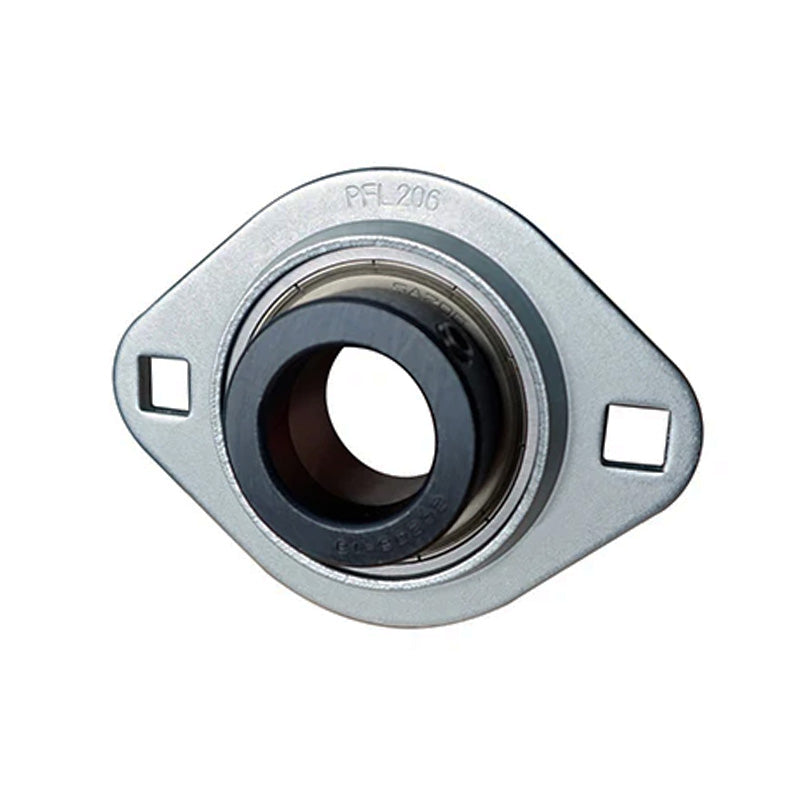

SAPFL206-19 Oval 2 Bolt Pressed Steel Bearing Housing with 1-3/16 inch Collar Insert
SAPFL206-19 Oval 2 Bolt Pressed Steel Bearing Housing with 1-3/16 inch Collar Insert
Regular price
CHF 15.00
ex VAT
Regular price
Sale price
CHF 15.00
ex VAT
Equivalent to: SLFL1-3/16EC
In stock
Price Break
3+
CHF 11.66
4+
CHF 11.00
9+
CHF 10.87
19+
CHF 10.74
49+
CHF 10.61
99+
CHF 10.48
499+
CHF 9.82
999+
CHF 9.69
1999+
CHF 9.56
2999+
CHF 9.43
4999+
CHF 9.17
Description
Description
|
2 Bolt Oval Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has a collar and grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. |
Equivalent: SLFL1-3/16EC
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- SAPFL
- Bolt Hole Centres:
- 90.5mm
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| a | 113mm |
| e | 90.5mm |
| b | 84mm |
| m | 18mm |
| s | 11mm |
| t | 5.2mm |
| f | 71mm |
| B | 30mm |
| D1 | 44.5mm |
| Bolt | 3/8 |
| Weight | 0.38 kg |
| Dynamic load | 1520 N |
| Static load | 1020 N |
