SKU: SB.202-10
SB202-10 Imperial Bearing Insert with 5/8 inch Bore 40mm Outside Dia
SB202-10 Imperial Bearing Insert with 5/8 inch Bore 40mm Outside Dia
Regular price
CHF 7.56
ex VAT
Regular price
Sale price
CHF 7.56
ex VAT
In stock
Price Break
10+
CHF 6.73
19+
CHF 6.35
29+
CHF 6.27
39+
CHF 6.20
49+
CHF 6.12
74+
CHF 6.05
99+
CHF 5.67
199+
CHF 5.59
249+
CHF 5.52
499+
CHF 5.44
999+
CHF 5.29
Couldn't load pickup availability
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 40mm
- Style:
- SB

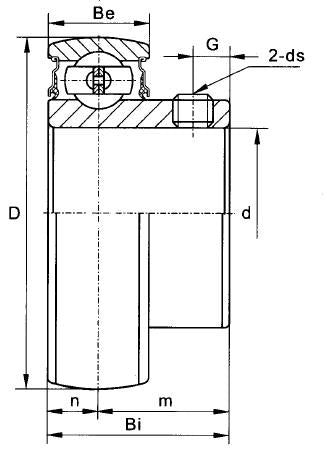

Technical
Technical
| d | 5/8 inch |
|---|---|
| Be | 12mm |
| D | 40mm |
| Bi | 22mm |
| n | 6mm |
| m | 16mm |
| G | 4.5mm |
| h | 3.6mm |
| Grub screw | 10-32 UNF |
| Weight | 0.1 kg |
| Dynamic load | 760 kgf |
| Static load | 450 kgf |
