SKU: SB.205-16

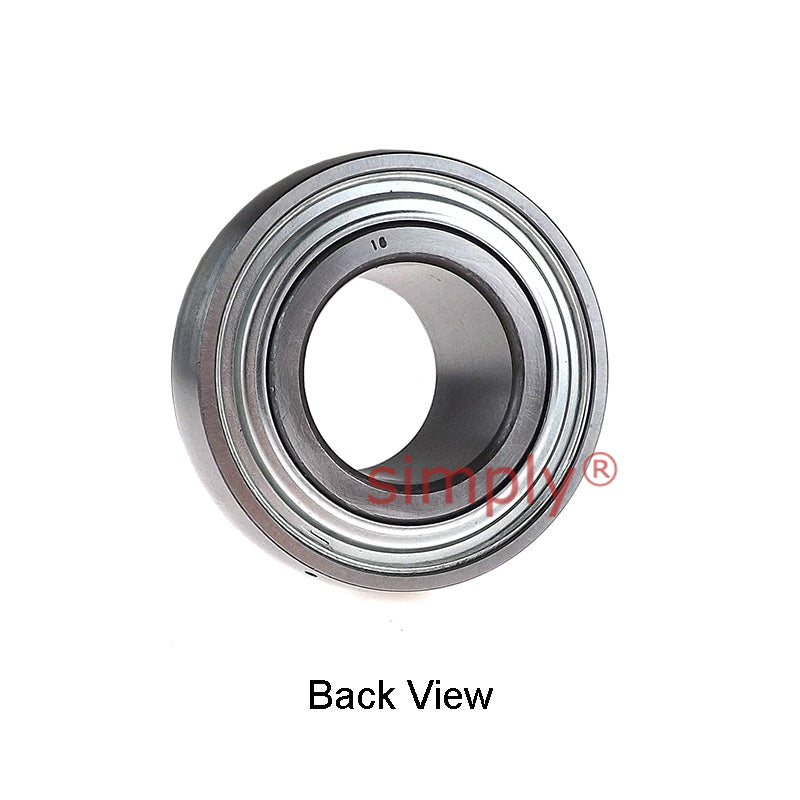

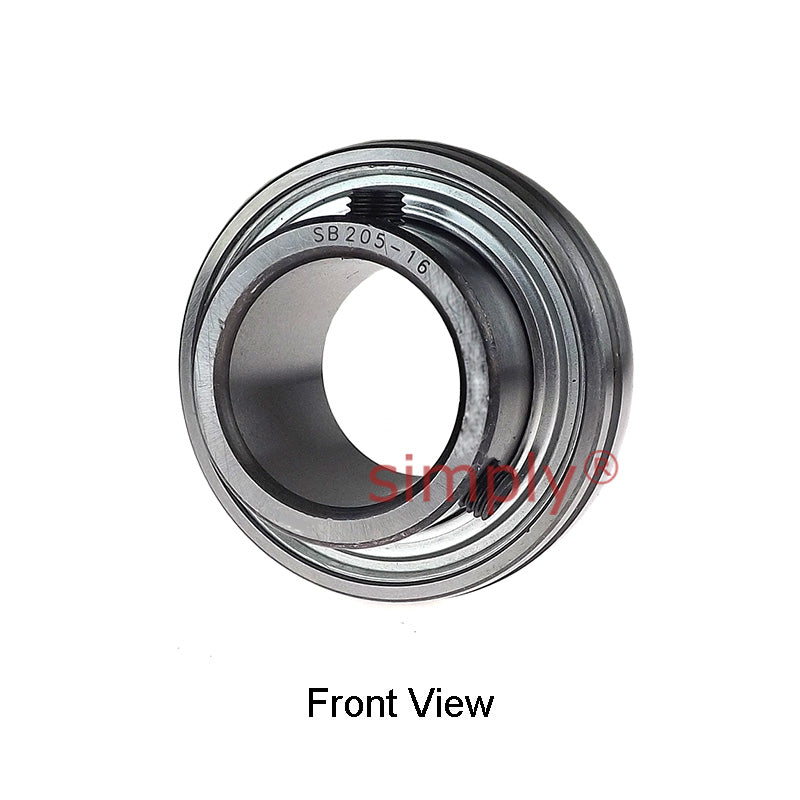

SB205-16 Imperial Bearing Insert with 1 inch Bore 52mm Outside Dia
SB205-16 Imperial Bearing Insert with 1 inch Bore 52mm Outside Dia
Regular price
CHF 8.00
ex VAT
Regular price
Sale price
CHF 8.00
ex VAT
In stock
Price Break
3+
CHF 5.89
4+
CHF 5.56
9+
CHF 5.49
19+
CHF 5.43
49+
CHF 5.36
99+
CHF 5.30
499+
CHF 4.96
999+
CHF 4.90
1999+
CHF 4.83
2999+
CHF 4.77
4999+
CHF 4.63
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 52mm
- Style:
- SB
Technical
Technical
| d | 1 inch |
|---|---|
| Be | 15mm |
| D | 52mm |
| Bi | 27mm |
| n | 7mm |
| m | 18mm |
| G | 4.5mm |
| h | 3.9mm |
| Grub screw | 1/4"X28 UNF |
| Weight | 0.18 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
| Rec max speed | 6250 rpm |
