SKU: SB.206-19

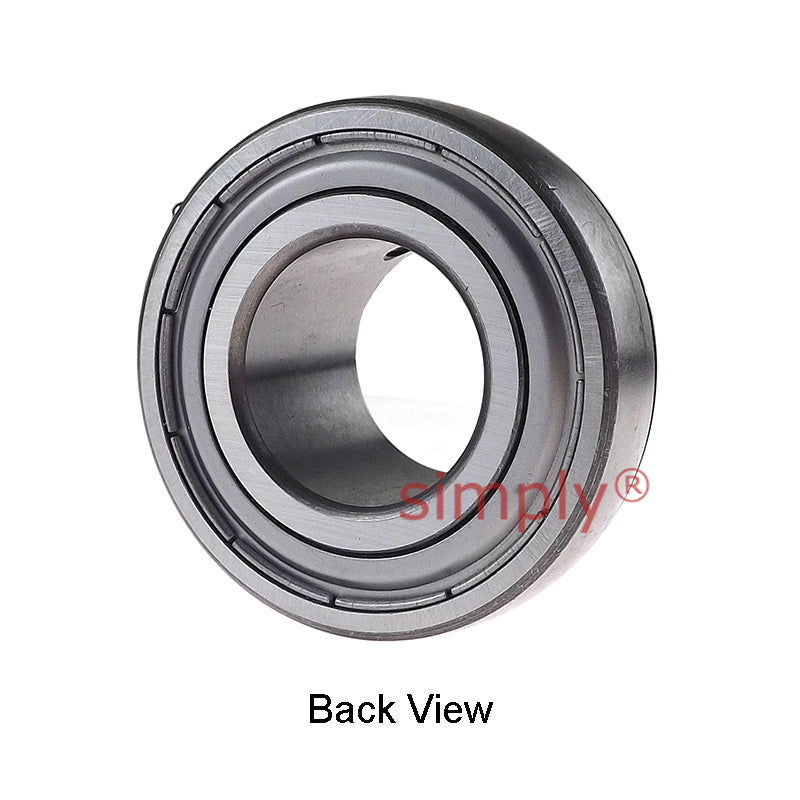

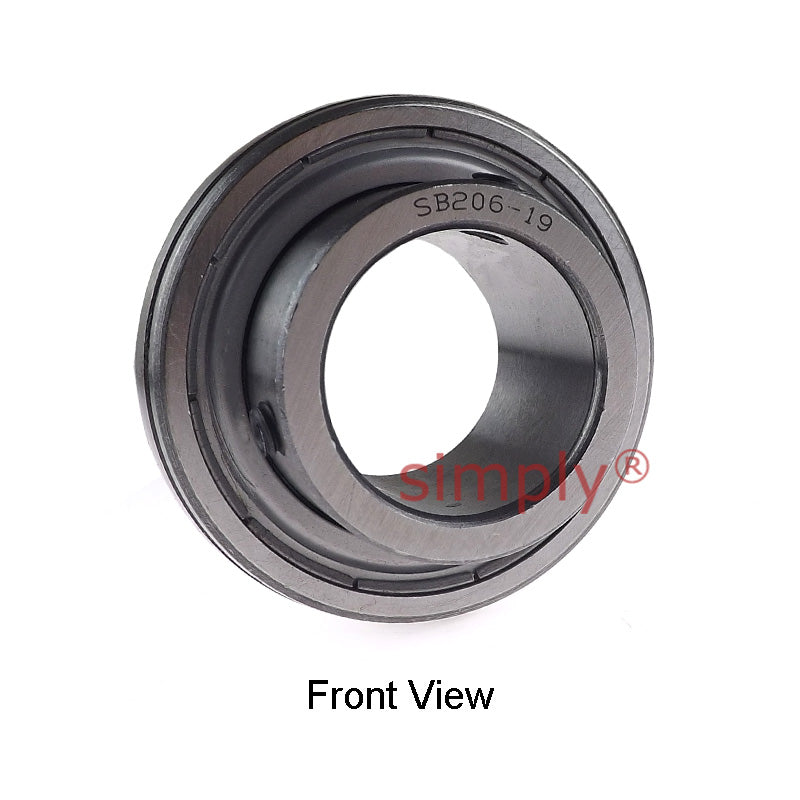

SB206-19 Imperial Bearing Insert with 1-3/16 inch Bore 62mm Outside Dia
SB206-19 Imperial Bearing Insert with 1-3/16 inch Bore 62mm Outside Dia
Regular price
CHF 9.31
ex VAT
Regular price
Sale price
CHF 9.31
ex VAT
In stock
Price Break
10+
CHF 8.29
19+
CHF 7.82
29+
CHF 7.73
39+
CHF 7.63
49+
CHF 7.54
74+
CHF 7.45
99+
CHF 6.98
199+
CHF 6.89
249+
CHF 6.80
499+
CHF 6.70
999+
CHF 6.52
Couldn't load pickup availability
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Outside Diameter:
- 62mm
- Style:
- SB
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| Be | 16mm |
| D | 62mm |
| Bi | 30mm |
| n | 8mm |
| m | 22mm |
| G | 5.5mm |
| h | 5mm |
| Grub screw | 1/4"X28 UNF |
| Weight | 0.27 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
