SKU: SB.207

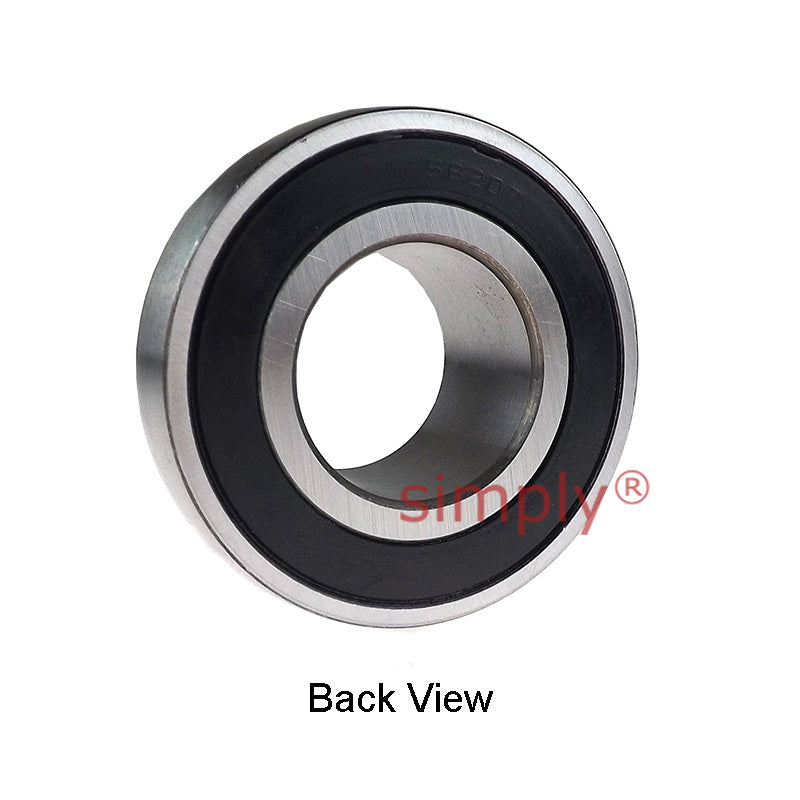

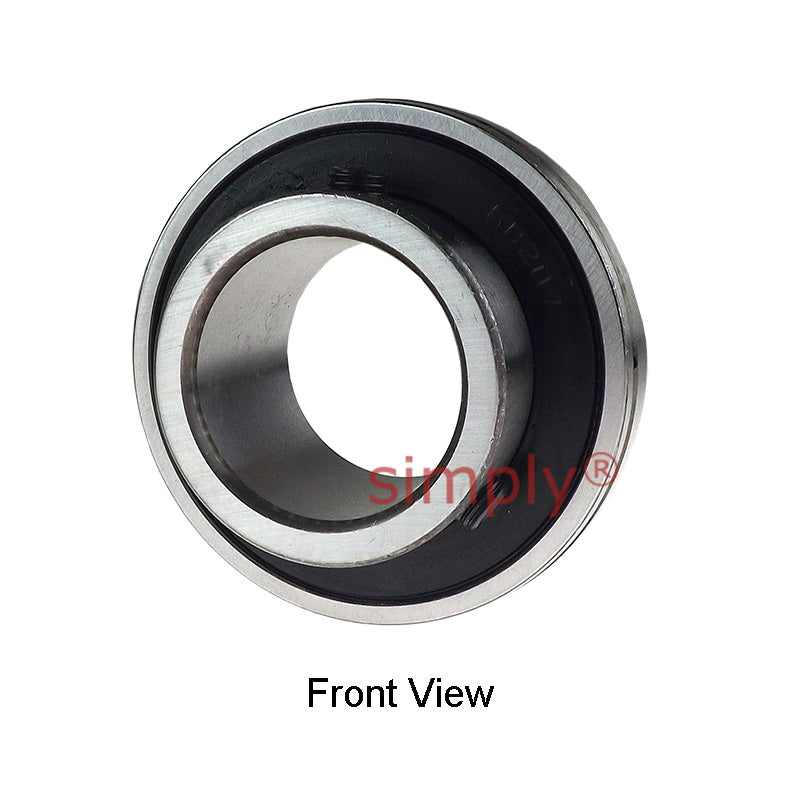

SB207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
SB207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
Regular price
CHF 11.00
ex VAT
Regular price
Sale price
CHF 11.00
ex VAT
In stock
Price Break
3+
CHF 8.15
4+
CHF 7.69
9+
CHF 7.60
19+
CHF 7.51
49+
CHF 7.42
99+
CHF 7.33
499+
CHF 6.87
999+
CHF 6.78
1999+
CHF 6.69
2999+
CHF 6.60
4999+
CHF 6.41
Share this product
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Style:
- SB
Technical
Technical
| d | 35mm |
|---|---|
| Be | 17mm |
| D | 72mm |
| Bi | 32mm |
| n | 8.5mm |
| m | 23.5mm |
| G | 6.5mm |
| h | 5.5mm |
| Grub screw | M8X1.0 |
| Weight | 0.42 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
