SKU: SB.208

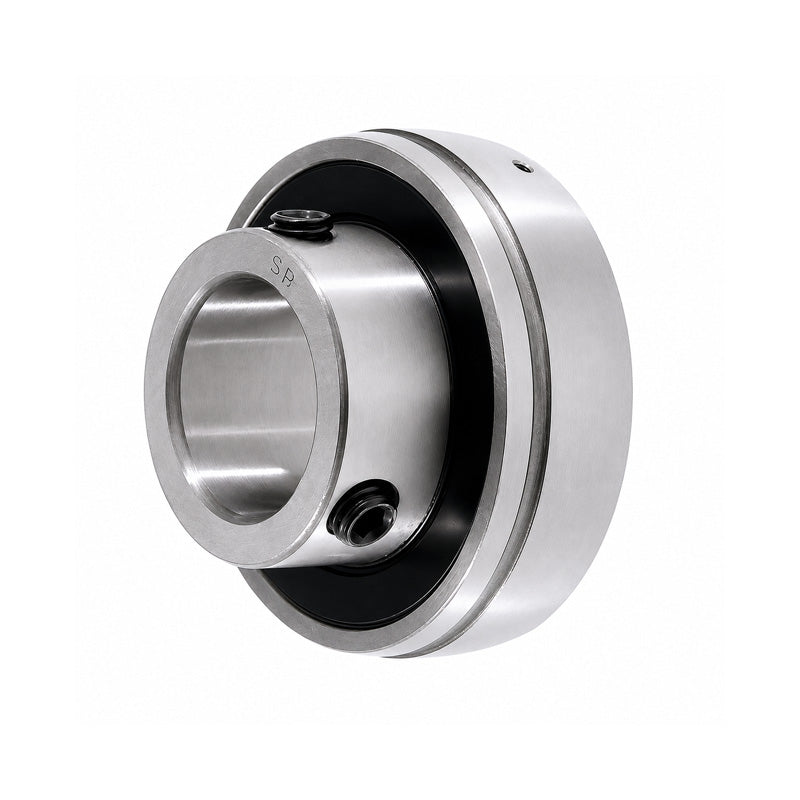

SB208 Metric Bearing Insert with 40mm Bore 80mm Outside Dia
SB208 Metric Bearing Insert with 40mm Bore 80mm Outside Dia
Regular price
CHF 10.00
ex VAT
Regular price
Sale price
CHF 10.00
ex VAT
In stock
Price Break
3+
CHF 7.18
4+
CHF 6.78
9+
CHF 6.70
19+
CHF 6.62
49+
CHF 6.54
99+
CHF 6.46
499+
CHF 6.05
999+
CHF 5.97
1999+
CHF 5.89
2999+
CHF 5.81
4999+
CHF 5.65
Share this product
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Style:
- SB
Technical
Technical
| d | 40mm |
|---|---|
| Be | 18mm |
| D | 80mm |
| Bi | 34mm |
| n | 9mm |
| m | 25mm |
| G | 7mm |
| h | 6mm |
| Grub screw | M8X1.0 |
| Weight | 0.6 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 4000 rpm |
