SKU: SB.211-32

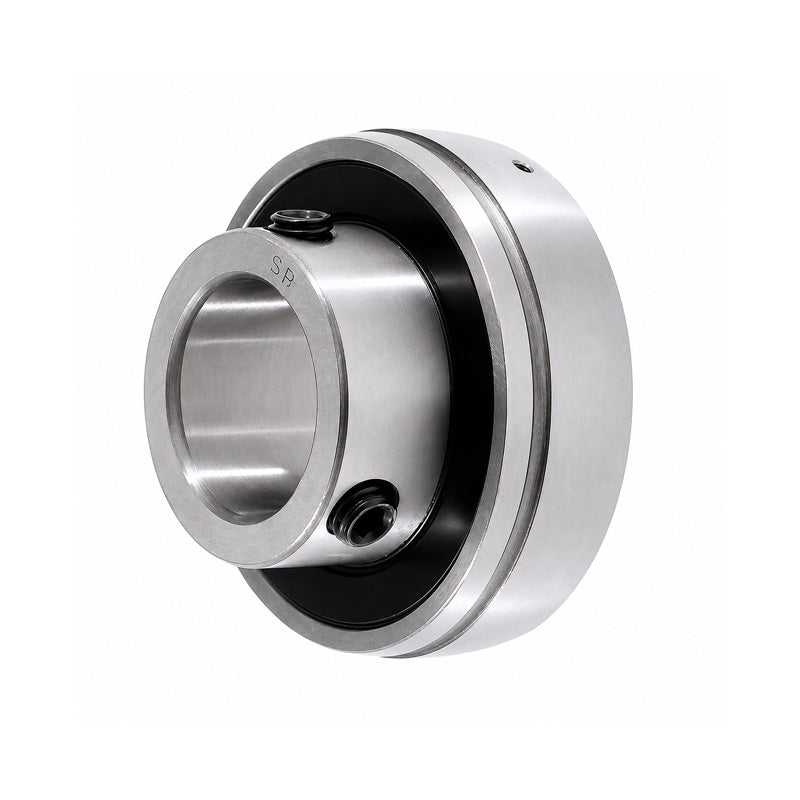

SB211-32 Imperial Bearing Insert with 2 inch Bore 100mm Outside Dia
SB211-32 Imperial Bearing Insert with 2 inch Bore 100mm Outside Dia
Regular price
CHF 21.56
ex VAT
Regular price
Sale price
CHF 21.56
ex VAT
In stock
Price Break
10+
CHF 19.19
19+
CHF 18.11
29+
CHF 17.89
39+
CHF 17.68
49+
CHF 17.46
74+
CHF 17.25
99+
CHF 16.17
199+
CHF 15.95
249+
CHF 15.74
499+
CHF 15.52
999+
CHF 15.09
Couldn't load pickup availability
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 100mm
- Style:
- SB
Technical
Technical
| d | 2 inch |
|---|---|
| Be | 23mm |
| D | 100mm |
| Bi | 45.3mm |
| n | 11.8mm |
| m | 33.5mm |
| G | 9.8mm |
| h | 7.2mm |
| Grub screw | 5/16-24 UNF |
| Weight | 1.1 kg |
| Dynamic load | 4400 kgf |
| Static load | 2960 kgf |
