SKU: SBFD205

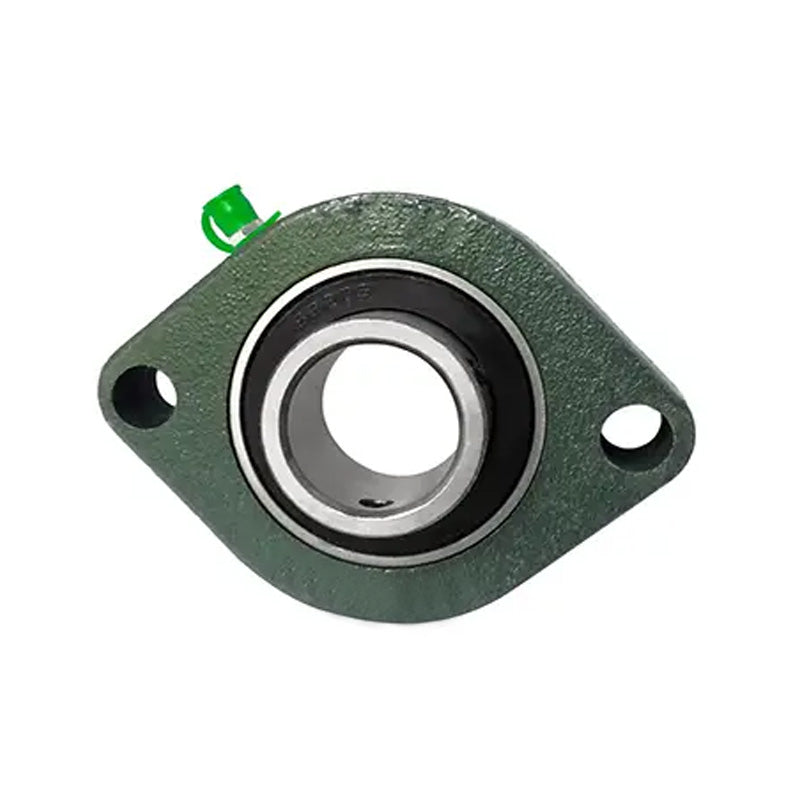

SBFD205 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore
SBFD205 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore
Regular price
CHF 9.48
ex VAT
Regular price
Sale price
CHF 9.48
ex VAT
In stock
Price Break
10+
CHF 8.44
19+
CHF 7.96
29+
CHF 7.87
39+
CHF 7.77
49+
CHF 7.68
74+
CHF 7.58
99+
CHF 7.11
199+
CHF 7.02
249+
CHF 6.92
499+
CHF 6.83
999+
CHF 6.64
Couldn't load pickup availability
Description
Description
SBFD200 Series Light Duty 2 Bolt Oval Housings: These light-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Style:
- SBFD
- Bolt Hole Centres:
- 76mm
Technical
Technical
| d | 25mm |
|---|---|
| a | 95mm |
| e | 76mm |
| b | 71mm |
| i | 9.5mm |
| s | 10mm |
| l | 17mm |
| z | 29mm |
| B1 | 27mm |
| n | 7.5mm |
| Bolt size | M8 |
| Bearing no | SB205 |
| Housing no | FD205 |
| Weight | 0.5 kg |
