SKU: SBFD205-15

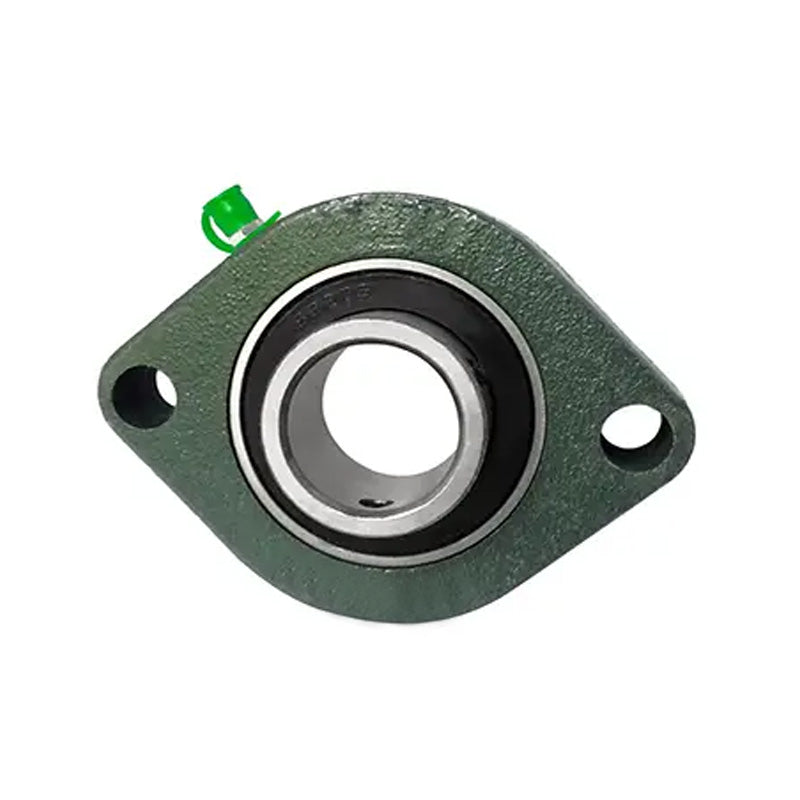

SBFD205-15 Imperial Two Bolt Cast Iron Oval Housing with 15/16 inch Bore
SBFD205-15 Imperial Two Bolt Cast Iron Oval Housing with 15/16 inch Bore
Regular price
CHF 16.00
ex VAT
Regular price
Sale price
CHF 16.00
ex VAT
In stock
Price Break
3+
CHF 12.01
4+
CHF 11.34
9+
CHF 11.20
19+
CHF 11.07
49+
CHF 10.93
99+
CHF 10.80
499+
CHF 10.12
999+
CHF 9.99
1999+
CHF 9.85
2999+
CHF 9.72
4999+
CHF 9.45
Description
Description
SBFD200 Series Light Duty 2 Bolt Oval Housings: These light-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Style:
- SBFD
- Bolt Hole Centres:
- 75.8mm = 2.984 (2-63/64) inch
Technical
Technical
| d | 15/16 inch |
|---|---|
| a | 3-3/4 inch |
| e | 2-63/64 inch |
| b | 2-51/64 inch |
| i | 3/8 inch |
| s | 25/64 inch |
| l | 43/64 inch |
| z | 1-9/64 inch |
| B1 | 1.063 inch |
| n | 0.2953 inch |
| Bolt size | 5/16 inch |
| Bearing no | SB205-15 |
| Housing no | FD205 |
| Weight | 0.5 kg |
