SKU: SBFD206-17

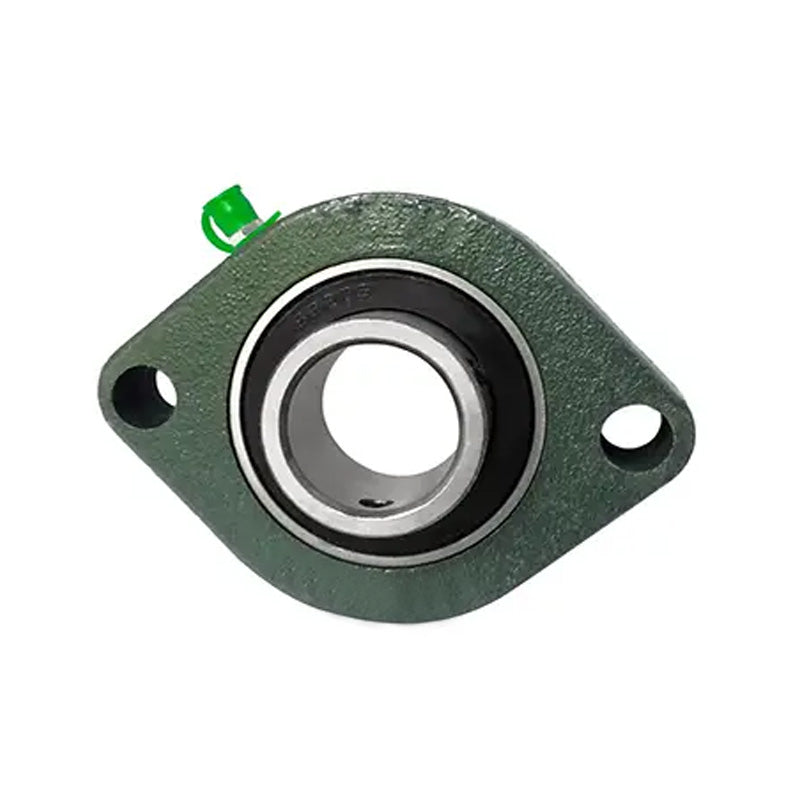

SBFD206-17 Imperial Two Bolt Cast Iron Oval Housing with 1-1/16 inch Bore - Allow 2-3 Days
SBFD206-17 Imperial Two Bolt Cast Iron Oval Housing with 1-1/16 inch Bore - Allow 2-3 Days
Regular price
CHF 18.00
ex VAT
Regular price
Sale price
CHF 18.00
ex VAT
In stock
Price Break
3+
CHF 15.33
4+
CHF 14.71
9+
CHF 14.40
19+
CHF 13.93
49+
CHF 13.62
99+
CHF 12.85
499+
CHF 10.84
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
SBFD200 Series Light Duty 2 Bolt Oval Housings: These light-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 26.99mm = 1.063 (1-1/16) inch
- Style:
- SBFD
- Bolt Hole Centres:
- 90.09mm = 3.547 (3-35/64) inch
Technical
Technical
| d | 1-1/16 inch |
|---|---|
| a | 4-7/16 inch |
| e | 3-35/64 inch |
| b | 3-5/16 inch |
| i | 15/32 inch |
| s | 15/32 inch |
| l | 53/64 inch |
| z | 1-11/32 inch |
| B1 | 1.1811 inch |
| n | 0.315 inch |
| Bolt size | M10 |
| Bearing no | SB206-17 |
| Housing no | FD206 |
| Weight | 0.8 kg |
