SKU: SBFD206-18
SBFD206-18 Imperial Two Bolt Cast Iron Oval Housing with 1-1/8 inch Bore
SBFD206-18 Imperial Two Bolt Cast Iron Oval Housing with 1-1/8 inch Bore
Regular price
CHF 18.00
ex VAT
Regular price
Sale price
CHF 18.00
ex VAT
In stock
Price Break
3+
CHF 14.20
4+
CHF 13.40
9+
CHF 13.25
19+
CHF 13.09
49+
CHF 12.93
99+
CHF 12.77
499+
CHF 11.97
999+
CHF 11.81
1999+
CHF 11.65
2999+
CHF 11.49
4999+
CHF 11.17
Description
Description

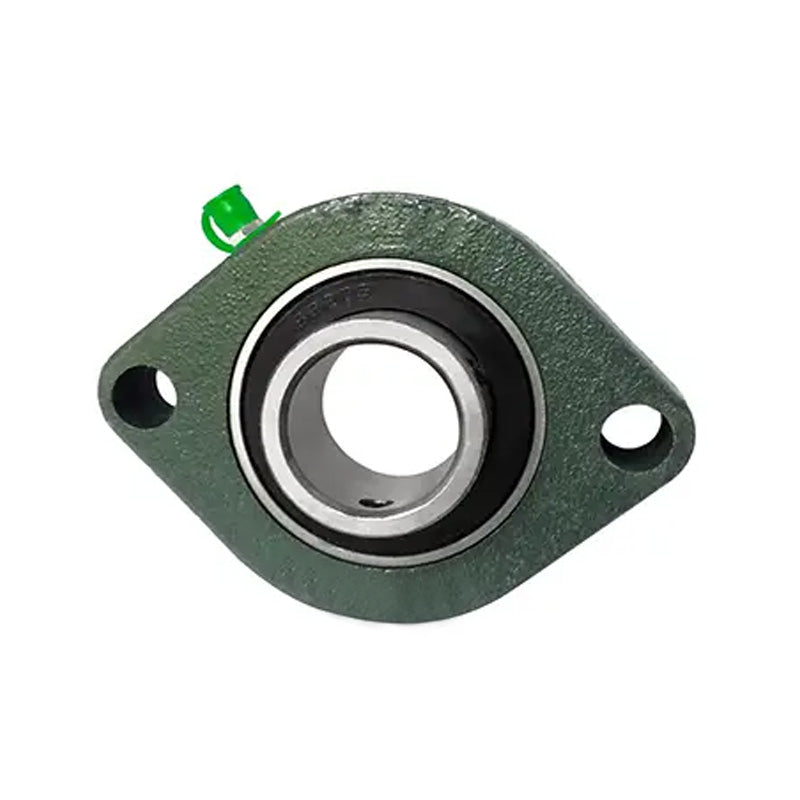

SBFD200 Series Light Duty 2 Bolt Oval Housings: These light-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- SBFD
- Bolt Hole Centres:
- 90.09mm = 3.547 (3-35/64) inch
Technical
Technical
| d | 1-1/8 inch |
|---|---|
| a | 4-7/16 inch |
| e | 3-35/64 inch |
| b | 3-5/16 inch |
| i | 15/32 inch |
| s | 15/32 inch |
| l | 53/64 inch |
| z | 1-11/32 inch |
| B1 | 1.1811 inch |
| n | 0.315 inch |
| Bolt size | 3/8 inch |
| Bearing no | SB206-18 |
| Housing no | FD206 |
| Weight | 0.8 kg |
