SKU: SBFD207

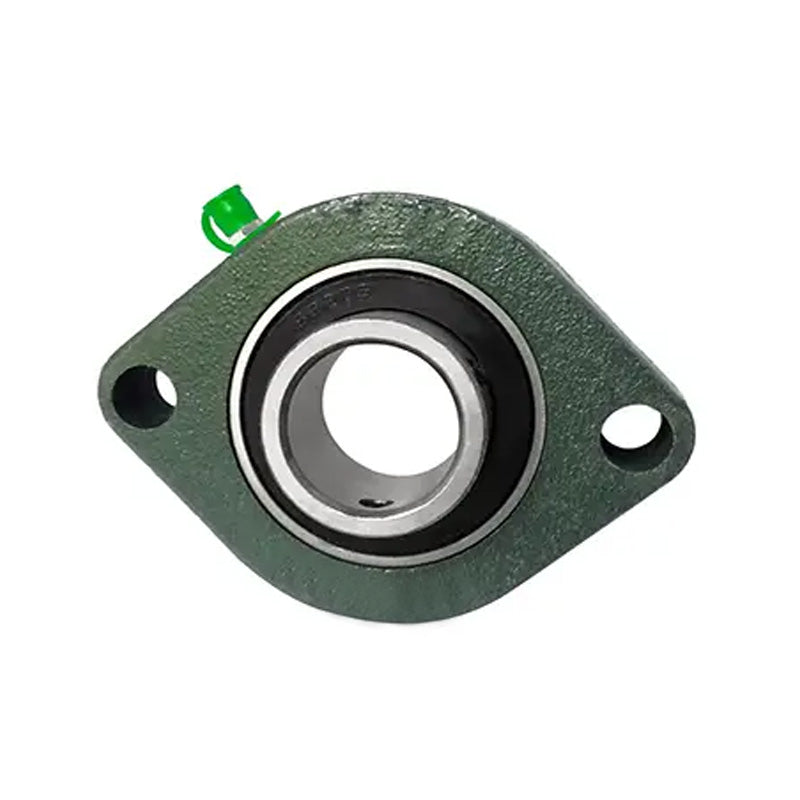

SBFD207 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore
SBFD207 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore
Regular price
CHF 16.16
ex VAT
Regular price
Sale price
CHF 16.16
ex VAT
In stock
Price Break
10+
CHF 14.38
19+
CHF 13.57
29+
CHF 13.41
39+
CHF 13.25
49+
CHF 13.09
74+
CHF 12.93
99+
CHF 12.12
199+
CHF 11.96
249+
CHF 11.80
499+
CHF 11.64
999+
CHF 11.31
Couldn't load pickup availability
Description
Description
SBFD200 Series Light Duty 2 Bolt Oval Housings: These light-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- SBFD
- Bolt Hole Centres:
- 100mm
Technical
Technical
| d | 35mm |
|---|---|
| a | 125mm |
| e | 100mm |
| b | 94mm |
| i | 12.5mm |
| s | 12mm |
| l | 22mm |
| z | 36mm |
| B1 | 32mm |
| n | 8.5mm |
| Bolt size | M10 |
| Bearing no | SB207 |
| Housing no | FD207 |
| Weight | 0.9 kg |
