SKU: SBFW208

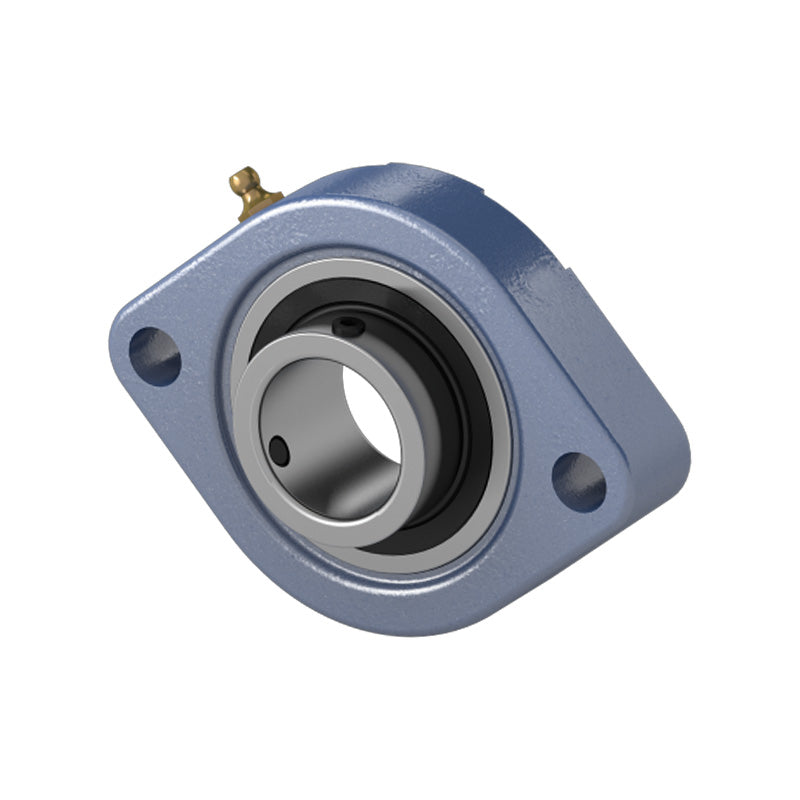

SBFW208 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore
SBFW208 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore
Regular price
CHF 23.85
ex VAT
Regular price
Sale price
CHF 23.85
ex VAT
In stock
Price Break
10+
CHF 21.23
19+
CHF 20.03
29+
CHF 19.80
39+
CHF 19.56
49+
CHF 19.32
74+
CHF 19.08
99+
CHF 17.89
199+
CHF 17.65
249+
CHF 17.41
499+
CHF 17.17
999+
CHF 16.70
Couldn't load pickup availability
Description
Description
|
SBFW Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required. This housing is a very compact design, it's height is little more than the width of the insert bearing thus making it suitable for very compact installations. Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- SBFW
- Bolt Hole Centres:
- 119mm
Technical
Technical
| d | 40mm |
|---|---|
| a | 150mm |
| e | 119mm |
| b | 100mm |
| i | 14.5mm |
| s | 14mm |
| l | 24mm |
| Bolt | M12 |
| z | 39.5mm |
| B | 34mm |
| n | 9mm |
| Weight | 1.4 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
