SKU: SBLF.205-14

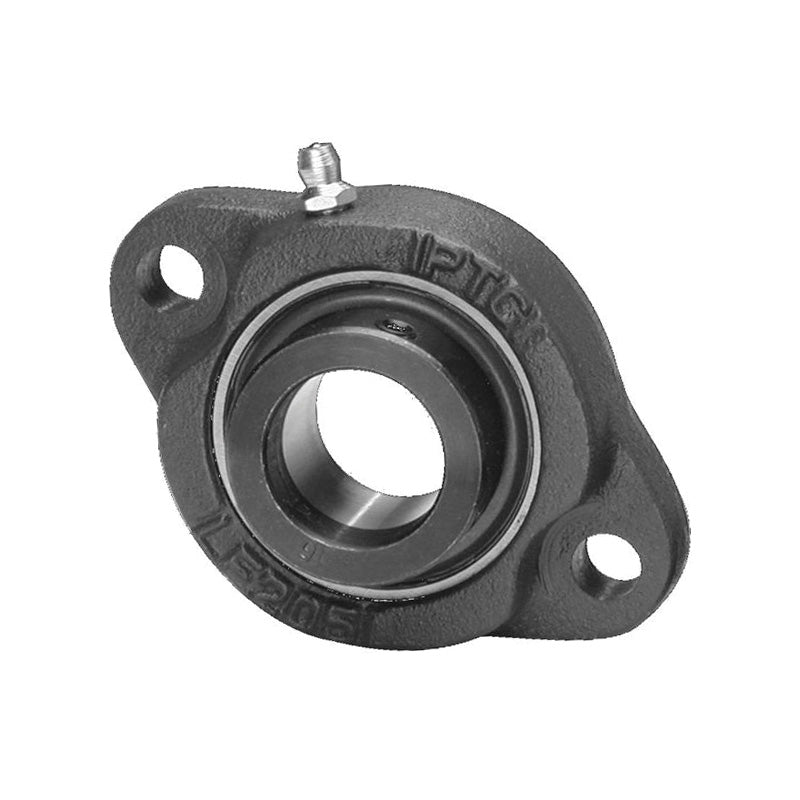

SBLF205-14 Imperial Two Bolt Cast Iron Oval Housing with 7/8 inch Bore Grub Screw Insert
SBLF205-14 Imperial Two Bolt Cast Iron Oval Housing with 7/8 inch Bore Grub Screw Insert
Regular price
CHF 12.61
ex VAT
Regular price
Sale price
CHF 12.61
ex VAT
In stock
Price Break
10+
CHF 11.22
19+
CHF 10.59
29+
CHF 10.47
39+
CHF 10.34
49+
CHF 10.21
74+
CHF 10.09
99+
CHF 9.46
199+
CHF 9.33
249+
CHF 9.21
499+
CHF 9.08
999+
CHF 8.83
Couldn't load pickup availability
Description
Description
|
SBLF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- SBLF
- Bolt Hole Centres:
- 76mm
Technical
Technical
| d | 7/8 inch |
|---|---|
| a | 95mm |
| e | 76mm |
| b | 64mm |
| i | 11mm |
| s | 10mm |
| g | 11mm |
| l | 20mm |
| Bolt | M8 |
| z | 30.5mm |
| n | 7.5mm |
| Weight | 0.5 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
