SKU: SBPF207.RND

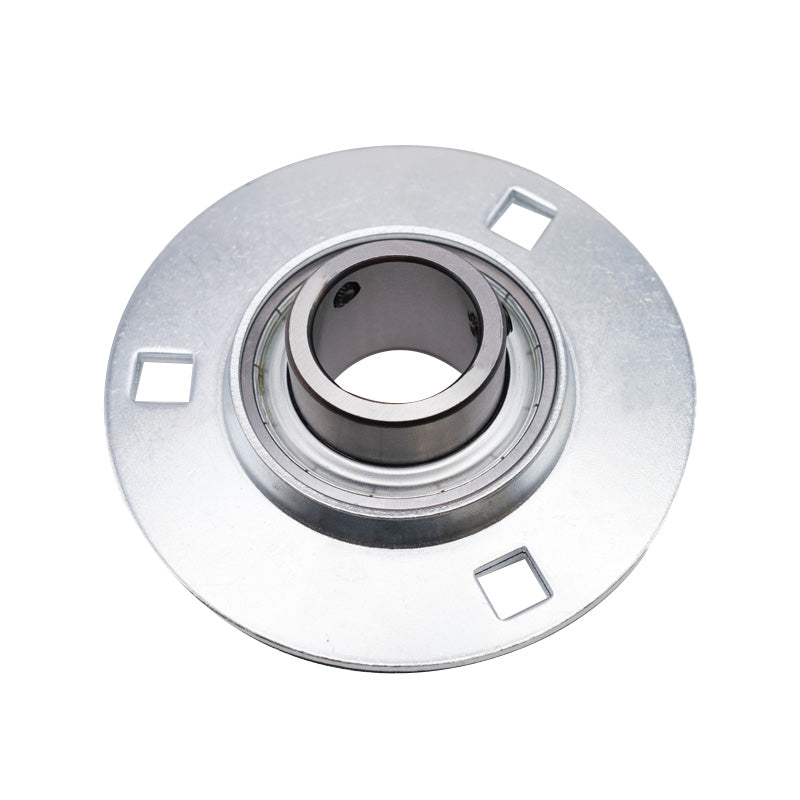

SBPF207 Round 3 Bolt Pressed Steel Bearing Housing with 35mm Insert
SBPF207 Round 3 Bolt Pressed Steel Bearing Housing with 35mm Insert
Regular price
CHF 18.00
ex VAT
Regular price
Sale price
CHF 18.00
ex VAT
Equivalent to: SLFE35
In stock
Price Break
3+
CHF 14.14
4+
CHF 13.35
9+
CHF 13.19
19+
CHF 13.03
49+
CHF 12.87
99+
CHF 12.71
499+
CHF 11.92
999+
CHF 11.76
1999+
CHF 11.60
2999+
CHF 11.44
4999+
CHF 11.12
Description
Description
|
3 Bolt Round Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing Note: Bearing units of 40mm / 1-1/2 or larger have 4 bolt holes |
Equivalent: SLFE35
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- SBPF
- Pitch Circle Diameter:
- 100mm
Technical
Technical
| d | 35mm |
|---|---|
| a | 122mm |
| e | 100mm |
| m | 20mm |
| s | 11mm |
| t | 5.2mm |
| f | 81mm |
| B | 32mm |
| n | 8.5mm |
| Bolt | M10 |
| Weight | 0.82 kg |
| Dynamic load | 2010 N |
| Static load | 1390 N |
