SKU: SBPFL207.OVL

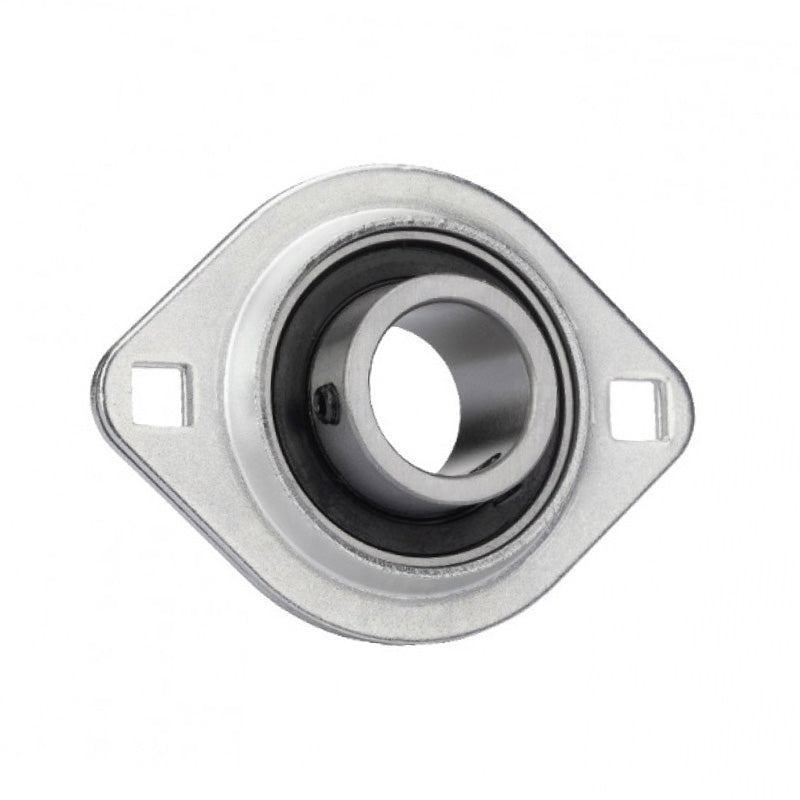

SBPFL207 Oval 2 Bolt Pressed Steel Bearing Housing with 35mm insert
SBPFL207 Oval 2 Bolt Pressed Steel Bearing Housing with 35mm insert
Regular price
CHF 18.00
ex VAT
Regular price
Sale price
CHF 18.00
ex VAT
Equivalent to: SLFL35
In stock
Price Break
3+
CHF 14.14
4+
CHF 13.35
9+
CHF 13.19
19+
CHF 13.03
49+
CHF 12.87
99+
CHF 12.71
499+
CHF 11.92
999+
CHF 11.76
1999+
CHF 11.60
2999+
CHF 11.44
4999+
CHF 11.12
Share this product
Description
Description
|
2 Bolt Oval Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. |
Equivalent: SLFL35
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- SBPFL
- Bolt Hole Centres:
- 100mm
Technical
Technical
| d | 35mm |
|---|---|
| a | 122mm |
| e | 100mm |
| b | 94mm |
| m | 20mm |
| s | 11mm |
| t | 5.2mm |
| f | 81mm |
| B | 32mm |
| n | 8.5mm |
| Bolt | M10 |
| Weight | 0.50 kg |
| Dynamic load | 2010 N |
| Static load | 1390 N |
