SKU: SBPFT205-15.TRI

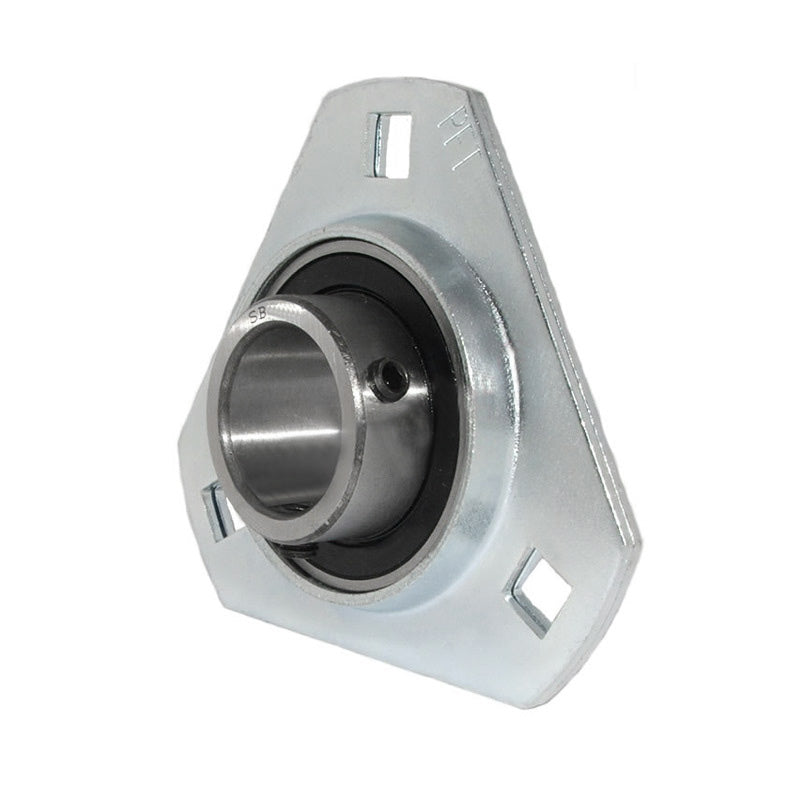

SBPFT205-15 Pressed Steel 3 Bolt Triangle Flange Housing with 15/16 inch insert
SBPFT205-15 Pressed Steel 3 Bolt Triangle Flange Housing with 15/16 inch insert
Regular price
CHF 11.00
ex VAT
Regular price
Sale price
CHF 11.00
ex VAT
Equivalent to: SLFT15/16
In stock
Price Break
3+
CHF 8.47
4+
CHF 7.99
9+
CHF 7.90
19+
CHF 7.80
49+
CHF 7.71
99+
CHF 7.61
499+
CHF 7.14
999+
CHF 7.04
1999+
CHF 6.95
2999+
CHF 6.85
4999+
CHF 6.66
Description
Description
|
3 Bolt Triangular Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium-duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost-effective bearing/housing assembly, replaceable insert, grub screw fixing |
Equivalent: SLFT15/16
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Style:
- SBPFT
- Pitch Circle Diameter:
- 76mm
Technical
Technical
| d | 15/16 inch |
|---|---|
| a | 95mm |
| e | 76mm |
| w | 35mm |
| m | 18mm |
| s | 9mm |
| t | 4mm |
| f | 60mm |
| B | 27mm |
| n | 7.5mm |
| Bolt | 5/16 inch |
| Weight | 0.36 kg |
| Dynamic load | 1100 N |
| Static load | 710 N |
