SKU: SC04B16ZZC3/5K-NTN

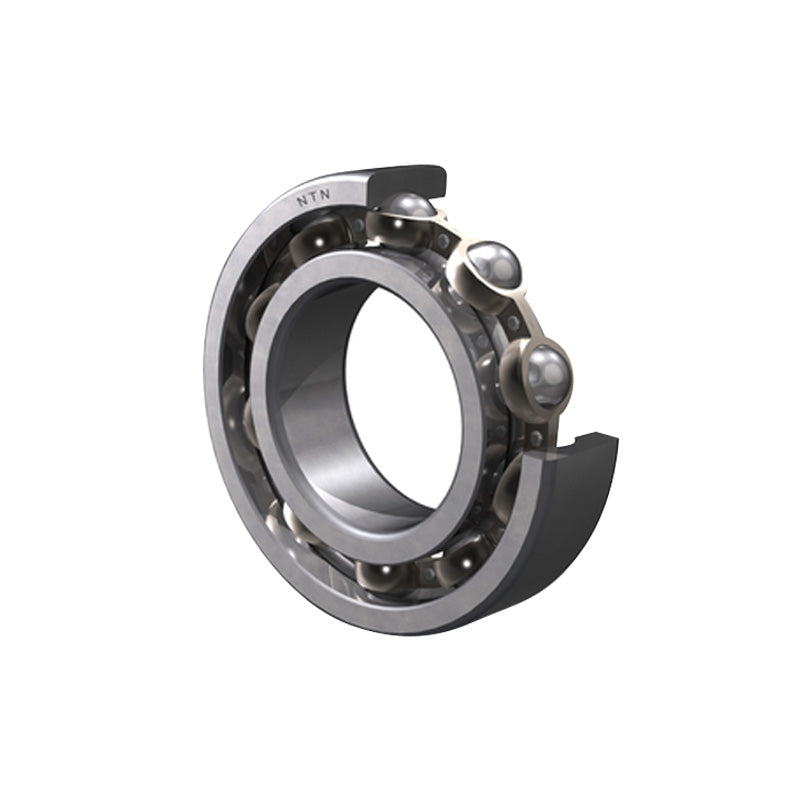

NTN SC04B16ZZC3/5K Metal Shield Type Deep Groove Ball Bearing 22.225x40x12mm
NTN SC04B16ZZC3/5K Metal Shield Type Deep Groove Ball Bearing 22.225x40x12mm
Regular price
CHF 40.17
ex VAT
Regular price
Sale price
CHF 40.17
ex VAT
In stock
Price Break
10+
CHF 35.75
19+
CHF 33.74
29+
CHF 33.34
39+
CHF 32.94
49+
CHF 32.54
74+
CHF 32.14
99+
CHF 30.13
199+
CHF 29.73
249+
CHF 29.32
499+
CHF 28.92
999+
CHF 28.12
Couldn't load pickup availability
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 22.225mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 22.225mm |
| D | 40mm |
| B | 12mm |
| Weight | 0.06 kg |
