SKU: SC70ES-SKF

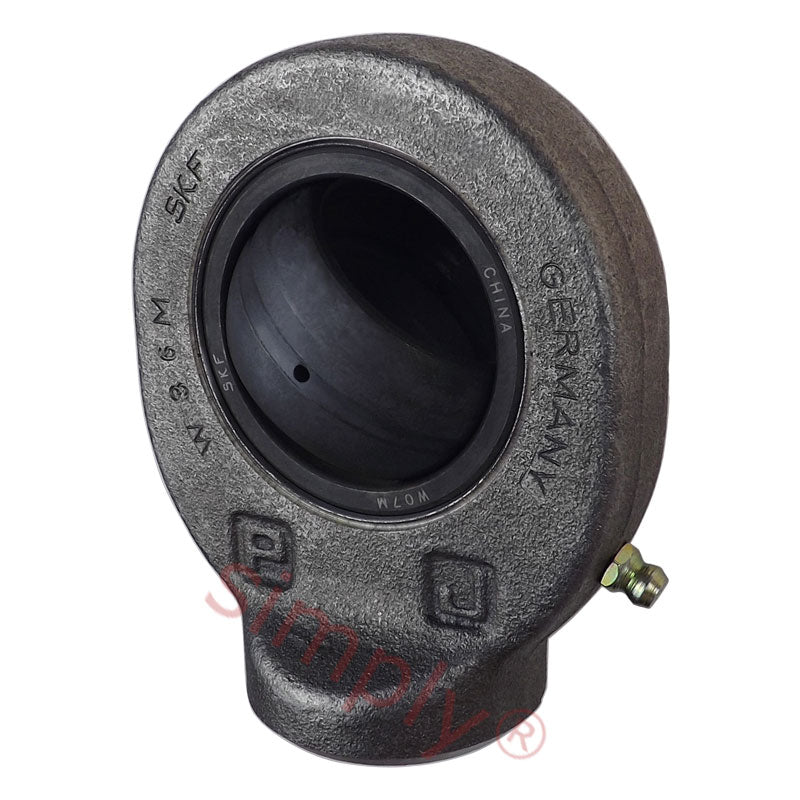

SKF SC70ES Steel / Steel Rod End With Cylindrical Section Welding Shank
SKF SC70ES Steel / Steel Rod End With Cylindrical Section Welding Shank
Regular price
CHF 398.00
ex VAT
Regular price
Sale price
CHF 398.00
ex VAT
Equivalent to: SC70 GK70DO SK70ES
In stock
Price Break
10+
CHF 316.42
19+
CHF 298.64
29+
CHF 295.08
39+
CHF 291.53
49+
CHF 287.97
74+
CHF 284.42
99+
CHF 266.64
199+
CHF 263.09
249+
CHF 259.53
499+
CHF 255.98
999+
CHF 248.87
Description
Description
|
SKF SC..ES Series Rod End Bearings: This series is classed as rod end bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these rod end bearings are unsealed and require maintenance from time to time in the form of re-lubrication via the re lubrication point in the side of the head, this will serve to extend it's life cycle. Dependent on installation design the lubricant may also be passed through the housing or spindle directly into the bearing at any point around the groove which has small holes to direct the lubricant onto the mating surfaces. These are metric sized rod end bearings. Manufactured from S355 J2G3 (St 52-3N) Steel and will operate within -50deg C to +200 deg C. This series is designed for welding to piston rods and cylinder bases and is provided with a location dowel pin and a cylindrical welding shank. Application: Suitable for heavy static or alternating loads, shock loads. Benefits: Re-lubricate-able, body can be welded |
Equivalent: SC70 GK70DO SK70ES
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
Technical
Technical
| d | 70mm |
|---|---|
| d2 max | 162mm |
| B | 49mm |
| C1 max | 43mm |
| h2 | 115mm |
| a | 6deg |
| Dynamic load C | 315 kN |
| Static load Co | 455 kN |
| Weight | 6.8 kg |
| dk | 92mm |
| d5 max | 82mm |
| d6 | 6mm |
| l6 max | 199mm |
| l7 min | 85mm |
| r1 min | 1mm |
| l8 | 5mm |
