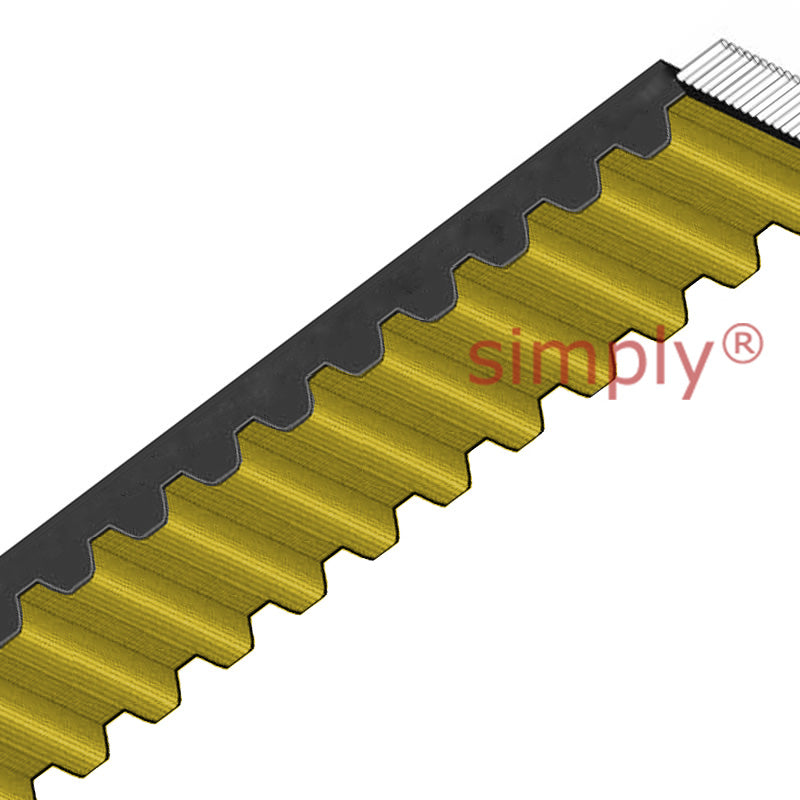

ContiTech SCC14M1190X90 Synchrochain Carbon Timing Belt 90mm Width 1190mm Length 85 Teeth

Carbon Synchrochain Timing Belts: These timing belts are high-performance timing belts engineered for demanding applications, withstanding temperatures from -40°C to +80°C and resisting oils, grease, and tropical climates. Their high-tensile carbon tension members provide exceptional stability, allowing them to handle maximum torques with minimal stretch and initial tension loss. Offering up to 30% higher power output and double the service life of traditional belts, it is ideal for various engineering fields. The belt's intelligent design ensures smooth, reliable power transmission and allows for up to 80% reduction in width while maintaining power output, reducing system costs and enhancing efficiency.
Benefits: Maintenance-free, withstands reverse flexing, resistant to various chemicals and oils

Brand / Quality:

ContiTech - High Quality

Belt Width Approx:

90mm

Belt Depth Approx:

10mm

Belt Length Approx:

1190mm

Number of Teeth:

85
