SKU: SCH1.1/4-RHP

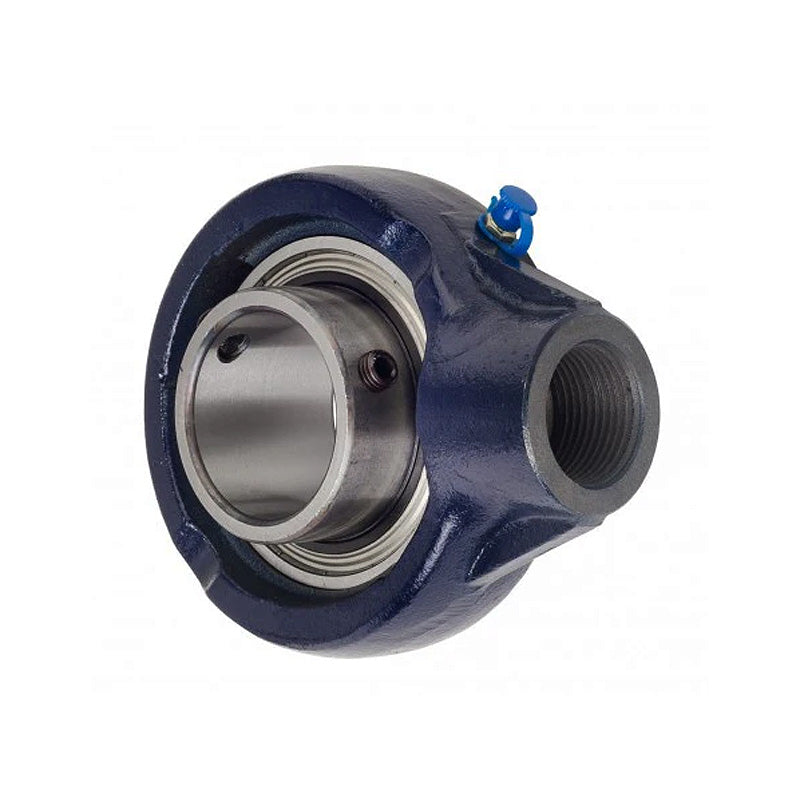

RHP SCH1-1/4 Metric Thread Cast Iron Hanger Bearing Unit and 1-1/4 inch Bore Insert 97mm Outside Diameter
RHP SCH1-1/4 Metric Thread Cast Iron Hanger Bearing Unit and 1-1/4 inch Bore Insert 97mm Outside Diameter
Regular price
CHF 90.30
ex VAT
Regular price
Sale price
CHF 90.30
ex VAT
In stock
Price Break
10+
CHF 80.37
19+
CHF 75.85
29+
CHF 74.95
39+
CHF 74.05
49+
CHF 73.14
74+
CHF 72.24
99+
CHF 67.73
199+
CHF 66.82
249+
CHF 65.92
499+
CHF 65.02
999+
CHF 63.21
Couldn't load pickup availability
Description
Description
|
RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 97mm
- Style:
- SCH
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| G1 | 0.748 inch |
| L | 3.819 inch |
| H | 4.685 inch |
| H1 | 2.748 inch |
| Threads | M24X3 Metric |
| A | 1.555 inch |
| A1 | 1 inch |
| B | 1.688 inch |
| s | 0.69 inch |
| d1 | 1.838 inch |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-1/4G+insonly">1035-1-1/4G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
