• RHP SCH2-3/16 Metric Thread Cast Iron Hanger Bearing Unit and 2-3/16 inch Bore Insert 143mm Outside Diameter
1 1

SKU: SCH2.3/16-RHP

RHP SCH2-3/16 Metric Thread Cast Iron Hanger Bearing Unit and 2-3/16 inch Bore Insert 143mm Outside Diameter

RHP SCH2-3/16 Metric Thread Cast Iron Hanger Bearing Unit and 2-3/16 inch Bore Insert 143mm Outside Diameter
CHF 175.09 ex VAT
CHF 175.09 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 155.83
19+ CHF 147.08
29+ CHF 145.32
39+ CHF 143.57
49+ CHF 141.82
74+ CHF 140.07
99+ CHF 131.32
199+ CHF 129.57
249+ CHF 127.82
499+ CHF 126.06
999+ CHF 122.56
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

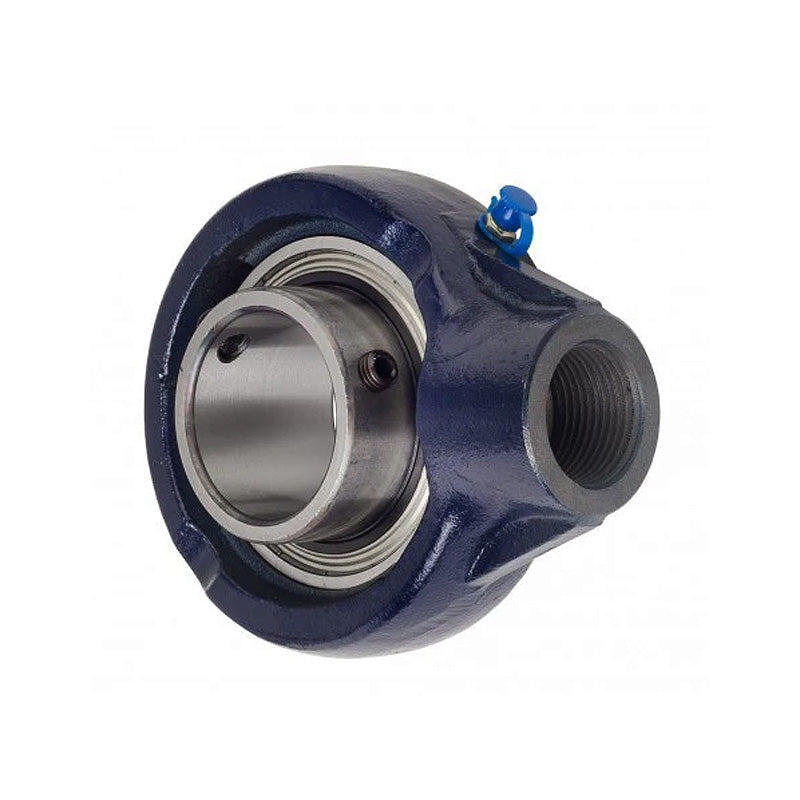

RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Note: The threaded part of the hanger unit has METRIC threads for this version.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
55.56mm = 2.187 (2-3/16) inch
Outside Diameter:
143mm
Style:
SCH
Technical
Bore 2-3/16 inch
G1 1.142 inch
L 5.63 inch
H 6.831 inch
H1 4 inch
Threads M42x4.5 Metric
A 2.303 inch
A1 1.218 inch
B 2.562 inch
s 1.002 inch
d1 2.966 inch
Dynamic load Cr 48000 N
Static load Cor 33000 N
Rec max speed 2800 rpm
Weight 3.5 kg
Insert <a href="advanced_search_result.php?keywords=1060-2-3/16G+insonly">1060-2-3/16G Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
