SKU: SCH2-RHP

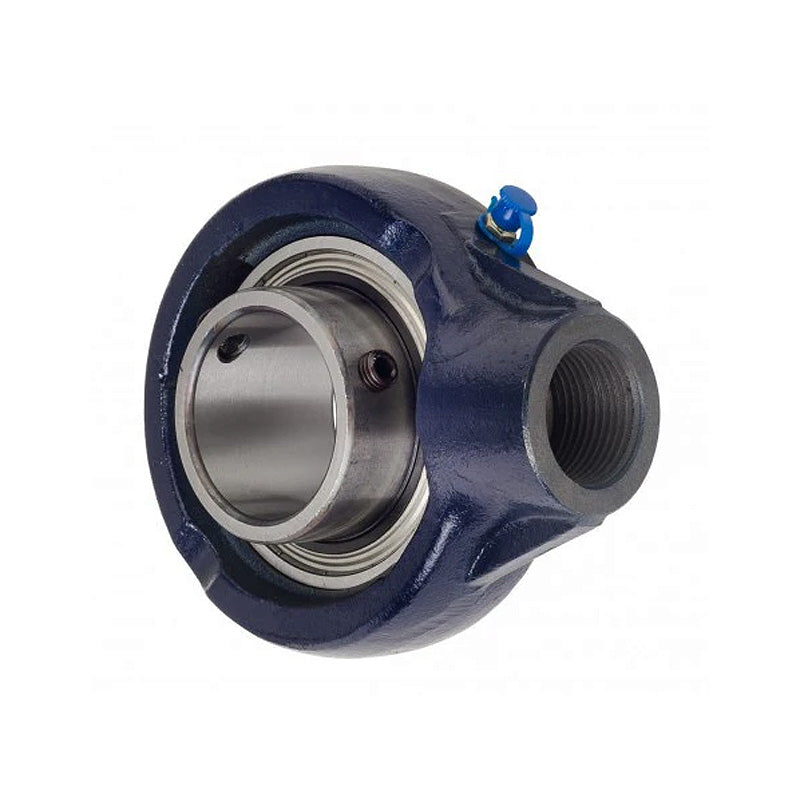

RHP SCH2 Metric Thread Cast Iron Hanger Bearing Unit and 2 inch Bore Insert 121mm Outside Diameter
RHP SCH2 Metric Thread Cast Iron Hanger Bearing Unit and 2 inch Bore Insert 121mm Outside Diameter
Regular price
CHF 192.18
ex VAT
Regular price
Sale price
CHF 192.18
ex VAT
In stock
Price Break
10+
CHF 171.04
19+
CHF 161.43
29+
CHF 159.51
39+
CHF 157.59
49+
CHF 155.67
74+
CHF 153.74
99+
CHF 144.14
199+
CHF 142.21
249+
CHF 140.29
499+
CHF 138.37
999+
CHF 134.53
Couldn't load pickup availability
Description
Description
|
RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 121mm
- Style:
- SCH
Technical
Technical
| Bore | 2 inch |
|---|---|
| G1 | 0.827 inch |
| L | 4.764 inch |
| H | 5.669 inch |
| H1 | 3.252 inch |
| Threads | M24X3 Metric |
| A | 1.87 inch |
| A1 | 1.094 inch |
| B | 2.031 inch |
| s | 0.752 inch |
| d1 | 2.449 inch |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-2G+insonly">1050-2G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
