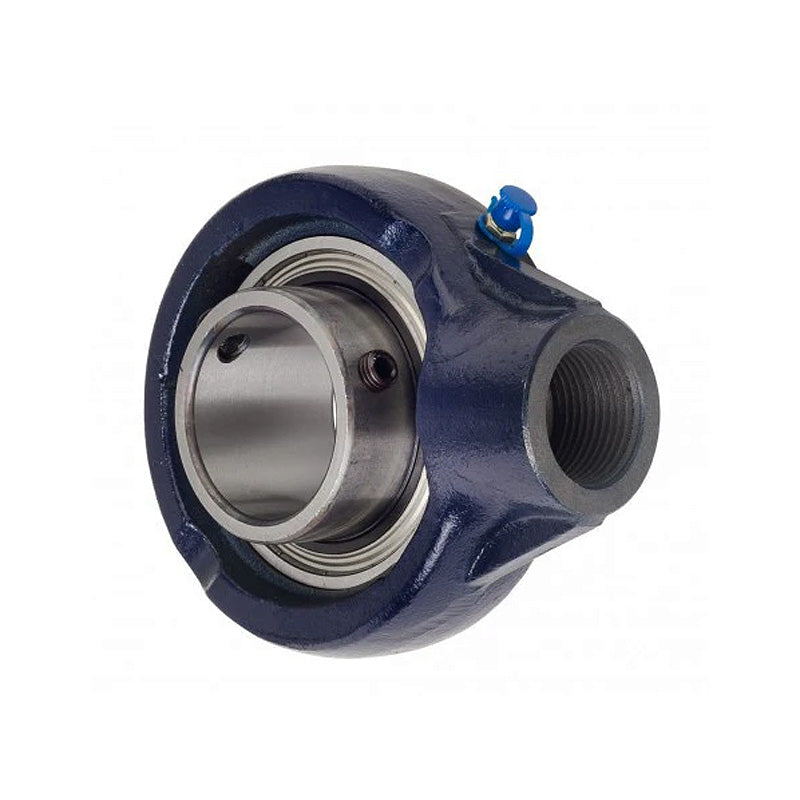

• RHP SCH20 Metric Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter
1 1

SKU: SCH20-RHP

RHP SCH20 Metric Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter

RHP SCH20 Metric Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter
CHF 62.21 ex VAT
CHF 62.21 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 55.37
19+ CHF 52.26
29+ CHF 51.63
39+ CHF 51.01
49+ CHF 50.39
74+ CHF 49.77
99+ CHF 46.66
199+ CHF 46.04
249+ CHF 45.41
499+ CHF 44.79
999+ CHF 43.55
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Note: The threaded part of the hanger unit has METRIC threads for this version.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
20mm
Outside Diameter:
67mm
Style:
SCH
Technical
Bore 20mm
G1 19mm
L 67mm
H 91.6mm
H1 57.2mm
Threads M16X2 Metric
A 34mm
A1 18.26mm
B 30.96mm
s 12.75mm
d1 28.5mm
Dynamic load Cr 12800 N
Static load Cor 6650 N
Rec max speed 6700 rpm
Weight 0.8 kg
Insert <a href="advanced_search_result.php?keywords=1020-20G+insonly">1020-20G Click Here</a>
Casting group 0
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
