• RHP SCH3/4 Metric Thread Cast Iron Hanger Bearing Unit and 3/4 inch Bore Insert 67mm Outside Diameter
1 1

SKU: SCH3/4-RHP

RHP SCH3/4 Metric Thread Cast Iron Hanger Bearing Unit and 3/4 inch Bore Insert 67mm Outside Diameter

RHP SCH3/4 Metric Thread Cast Iron Hanger Bearing Unit and 3/4 inch Bore Insert 67mm Outside Diameter
CHF 66.00 ex VAT
CHF 66.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 58.74
19+ CHF 55.44
29+ CHF 54.78
39+ CHF 54.12
49+ CHF 53.46
74+ CHF 52.80
99+ CHF 49.50
199+ CHF 48.84
249+ CHF 48.18
499+ CHF 47.52
999+ CHF 46.20
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

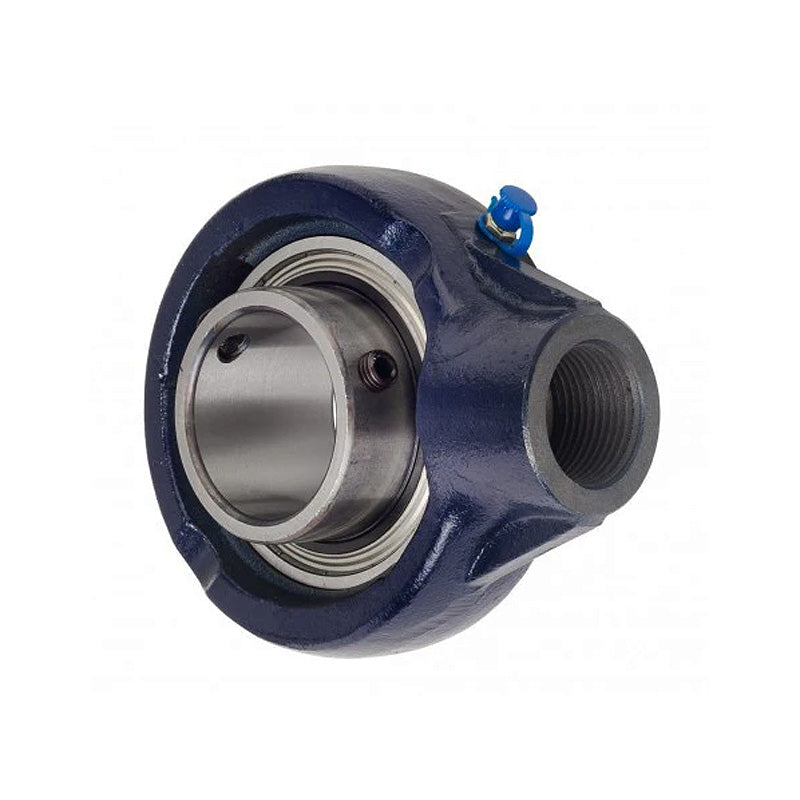

RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Note: The threaded part of the hanger unit has METRIC threads for this version.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Outside Diameter:
67mm
Style:
SCH
Technical
Bore 3/4 inch
G1 0.748 inch
L 2.638 inch
H 3.606 inch
H1 2.252 inch
Threads M16X2 Metric
A 1.339 inch
A1 0.719 inch
B 1.219 inch
s 0.502 inch
d1 1.122 inch
Dynamic load Cr 12800 N
Static load Cor 6650 N
Rec max speed 6700 rpm
Weight 0.8 kg
Insert <a href="advanced_search_result.php?keywords=1020-3/4G+insonly">1020-3/4G Click Here</a>
Casting group 0
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
