SKU: SCH30-RHP

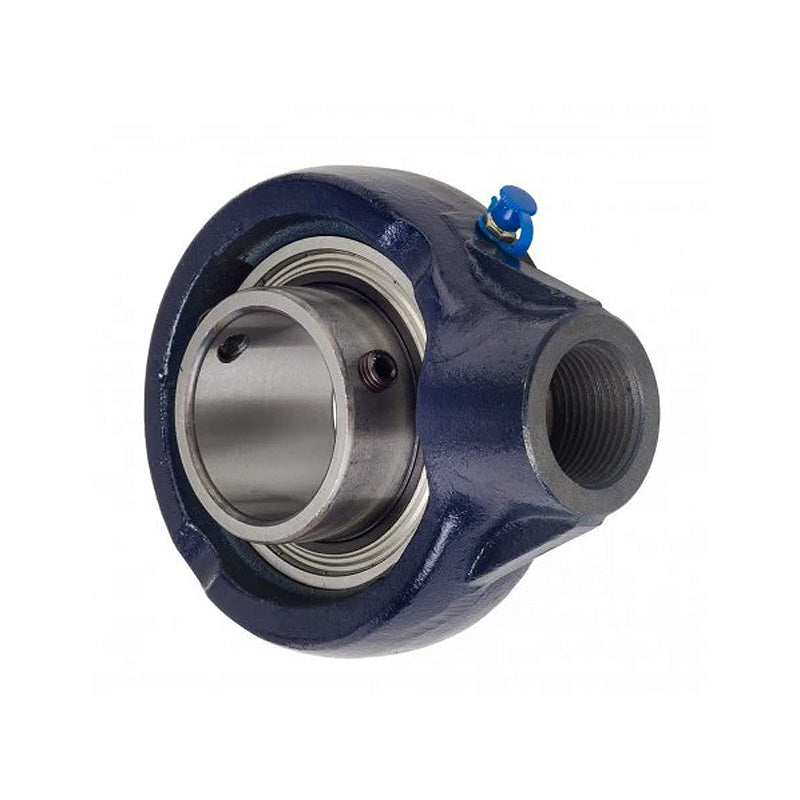

RHP SCH30 Metric Thread Cast Iron Hanger Bearing Unit and 30mm Bore Insert 89mm Outside Diameter
RHP SCH30 Metric Thread Cast Iron Hanger Bearing Unit and 30mm Bore Insert 89mm Outside Diameter
Regular price
CHF 68.00
ex VAT
Regular price
Sale price
CHF 68.00
ex VAT
In stock
Price Break
10+
CHF 53.48
20+
CHF 50.47
30+
CHF 49.87
40+
CHF 49.27
50+
CHF 48.67
75+
CHF 48.07
100+
CHF 45.07
200+
CHF 44.47
250+
CHF 43.86
500+
CHF 43.26
1000+
CHF 42.06
Share this product
Description
Description
|
RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 89mm
- Style:
- SCH
Technical
Technical
| Bore | 30mm |
|---|---|
| G1 | 16mm |
| L | 89mm |
| H | 107.5mm |
| H1 | 61.9mm |
| Threads | M20X2.5 Metric |
| A | 33.5mm |
| A1 | 22.22mm |
| B | 38.1mm |
| s | 15.93mm |
| d1 | 40mm |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-30G+insonly">1030-30G Click Here</a> |
| Casting group | 2/0 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
