SKU: SCH40-RHP

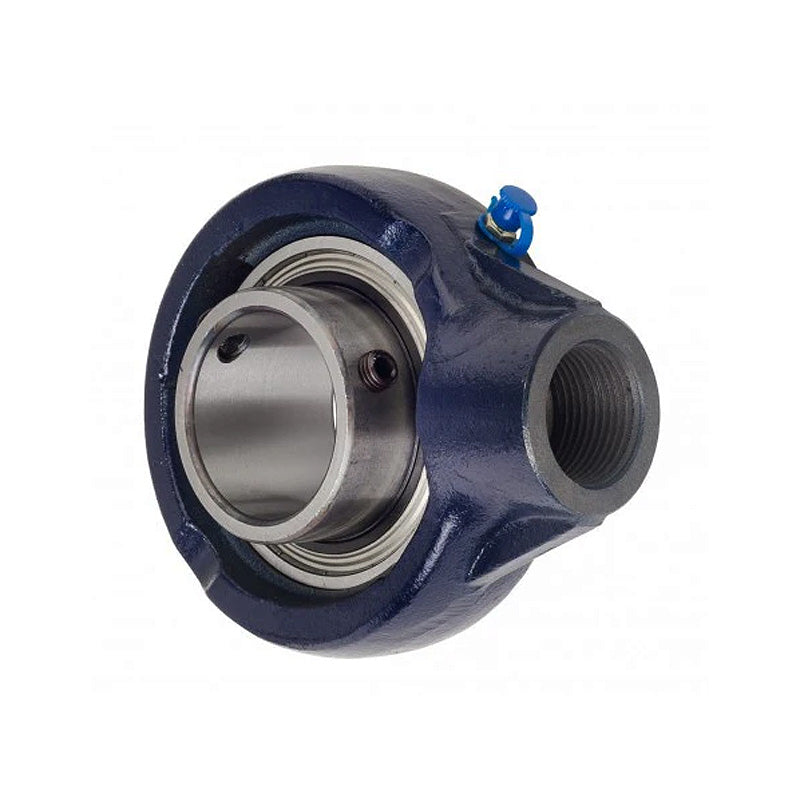

RHP SCH40 Metric Thread Cast Iron Hanger Bearing Unit and 40mm Bore Insert 107mm Outside Diameter
RHP SCH40 Metric Thread Cast Iron Hanger Bearing Unit and 40mm Bore Insert 107mm Outside Diameter
Regular price
CHF 98.00
ex VAT
Regular price
Sale price
CHF 98.00
ex VAT
In stock
Price Break
10+
CHF 77.95
20+
CHF 73.57
30+
CHF 72.70
40+
CHF 71.82
50+
CHF 70.95
75+
CHF 70.07
100+
CHF 65.69
200+
CHF 64.81
250+
CHF 63.94
500+
CHF 63.06
1000+
CHF 61.31
Share this product
Description
Description
|
RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 107mm
- Style:
- SCH
Technical
Technical
| Bore | 40mm |
|---|---|
| G1 | 19mm |
| L | 107mm |
| H | 127.5mm |
| H1 | 73mm |
| Threads | M24X3 Metric |
| A | 39.5mm |
| A1 | 27.79mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 52.7mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-40G+insonly">1040-40G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
