SKU: SCH45-RHP

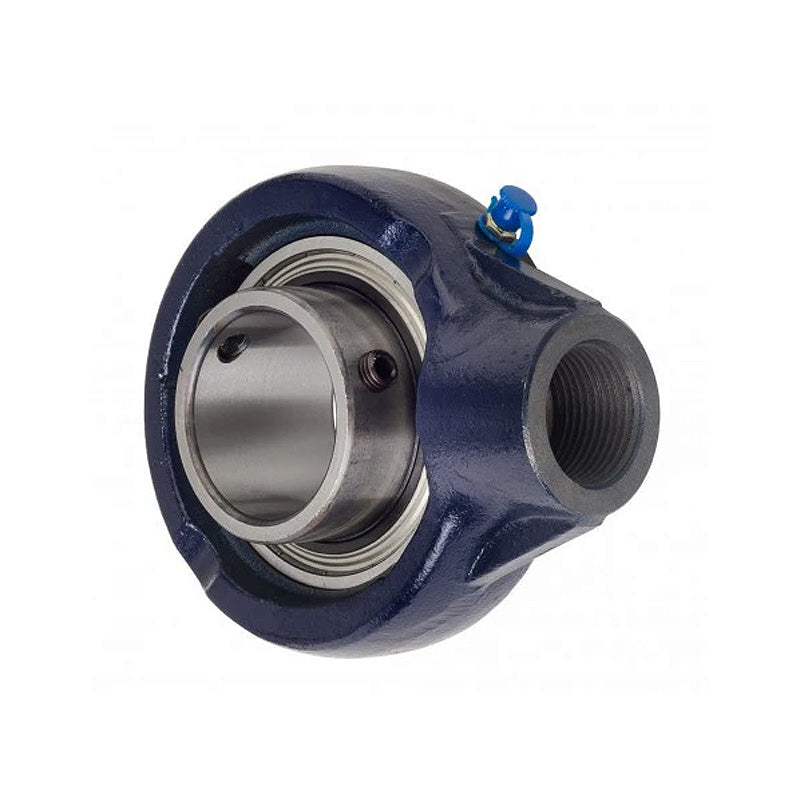

RHP SCH45 Metric Thread Cast Iron Hanger Bearing Unit and 45mm Bore Insert 121mm Outside Diameter
RHP SCH45 Metric Thread Cast Iron Hanger Bearing Unit and 45mm Bore Insert 121mm Outside Diameter
Regular price
CHF 123.00
ex VAT
Regular price
Sale price
CHF 123.00
ex VAT
In stock
Price Break
10+
CHF 97.80
20+
CHF 92.30
30+
CHF 91.20
40+
CHF 90.10
50+
CHF 89.00
75+
CHF 87.91
100+
CHF 82.41
200+
CHF 81.31
250+
CHF 80.21
500+
CHF 79.12
1000+
CHF 76.92
Share this product
Description
Description
|
RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 121mm
- Style:
- SCH
Technical
Technical
| Bore | 45mm |
|---|---|
| G1 | 21mm |
| L | 121mm |
| H | 144mm |
| H1 | 82.6mm |
| Threads | M24X3 Metric |
| A | 47.5mm |
| A1 | 27.79mm |
| B | 51.59mm |
| s | 19.1mm |
| d1 | 62.2mm |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-45G+insonly">1050-45G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
