SKU: SCH60-RHP

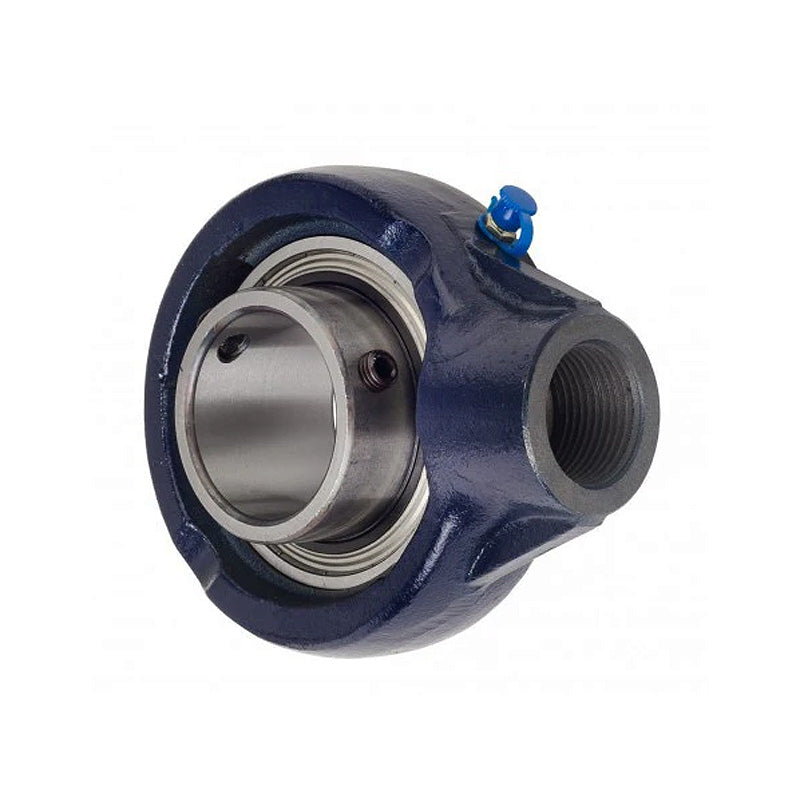

RHP SCH60 Metric Thread Cast Iron Hanger Bearing Unit and 60mm Bore Insert 143mm Outside Diameter - Allow 2-3 Days
RHP SCH60 Metric Thread Cast Iron Hanger Bearing Unit and 60mm Bore Insert 143mm Outside Diameter - Allow 2-3 Days
Regular price
CHF 273.00
ex VAT
Regular price
Sale price
CHF 273.00
ex VAT
In stock
Price Break
10+
CHF 241.31
20+
CHF 231.56
30+
CHF 226.69
40+
CHF 219.38
50+
CHF 214.50
75+
CHF 202.31
100+
CHF 170.63
200+
CHF 0.00
250+
CHF 0.00
500+
CHF 0.00
1000+
CHF 0.00
Share this product
Description
Description
|
RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 143mm
- Style:
- SCH
Technical
Technical
| Bore | 60mm |
|---|---|
| G1 | 29mm |
| L | 143mm |
| H | 173.5mm |
| H1 | 101.6mm |
| Threads | M42x4.5 Metric |
| A | 58.5mm |
| A1 | 30.94mm |
| B | 65.07mm |
| s | 25.45mm |
| d1 | 75.34mm |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 3.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-60G+insonly">1060-60G Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
