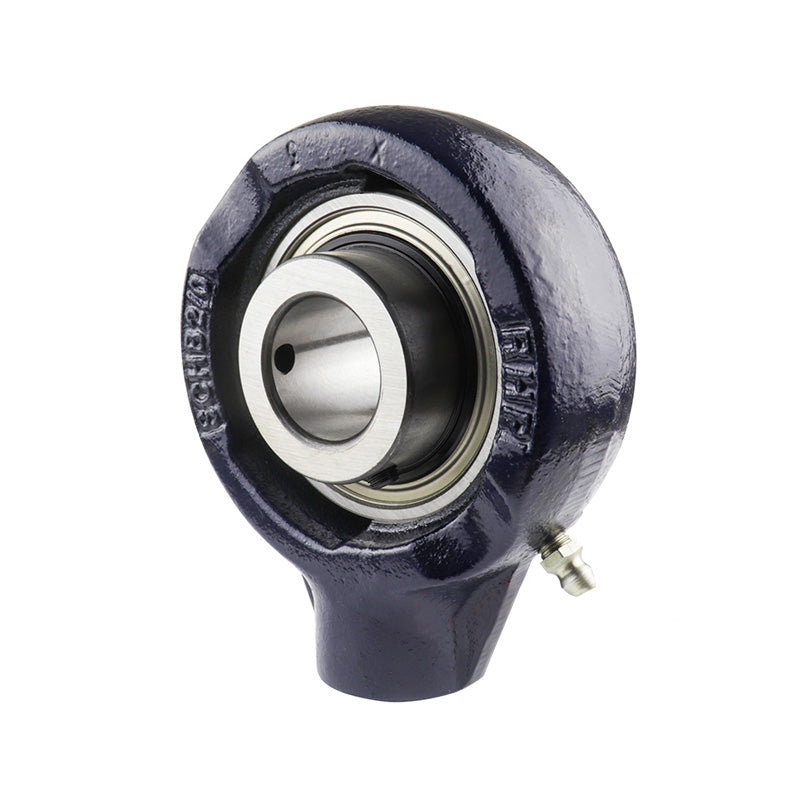

• RHP SCHB1-7/16 BSP Thread Cast Iron Hanger Bearing Unit and 1-7/16 inch Bore Insert 107mm Outside Diameter
1 1

SKU: SCHB1.7/16-RHP

RHP SCHB1-7/16 BSP Thread Cast Iron Hanger Bearing Unit and 1-7/16 inch Bore Insert 107mm Outside Diameter

RHP SCHB1-7/16 BSP Thread Cast Iron Hanger Bearing Unit and 1-7/16 inch Bore Insert 107mm Outside Diameter
CHF 90.30 ex VAT
CHF 90.30 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 80.37
19+ CHF 75.85
29+ CHF 74.95
39+ CHF 74.05
49+ CHF 73.14
74+ CHF 72.24
99+ CHF 67.73
199+ CHF 66.82
249+ CHF 65.92
499+ CHF 65.02
999+ CHF 63.21
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SCHB Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Note: The threaded part of the hanger unit has BSP threads for this version.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
36.51mm = 1.437 (1-7/16) inch
Outside Diameter:
107mm
Style:
SCHB
Technical
Bore 1-7/16 inch
G1 0.748 inch
L 4.213 inch
H 5.02 inch
H1 2.874 inch
Threads 3/4 BSP
A 1.555 inch
A1 1.094 inch
B 1.938 inch
s 0.752 inch
d1 2.075 inch
Dynamic load Cr 32500 N
Static load Cor 19900 N
Rec max speed 4000 rpm
Weight 1.6 kg
Insert <a href="advanced_search_result.php?keywords=1040-1-7/16G+insonly">1040-1-7/16G Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
